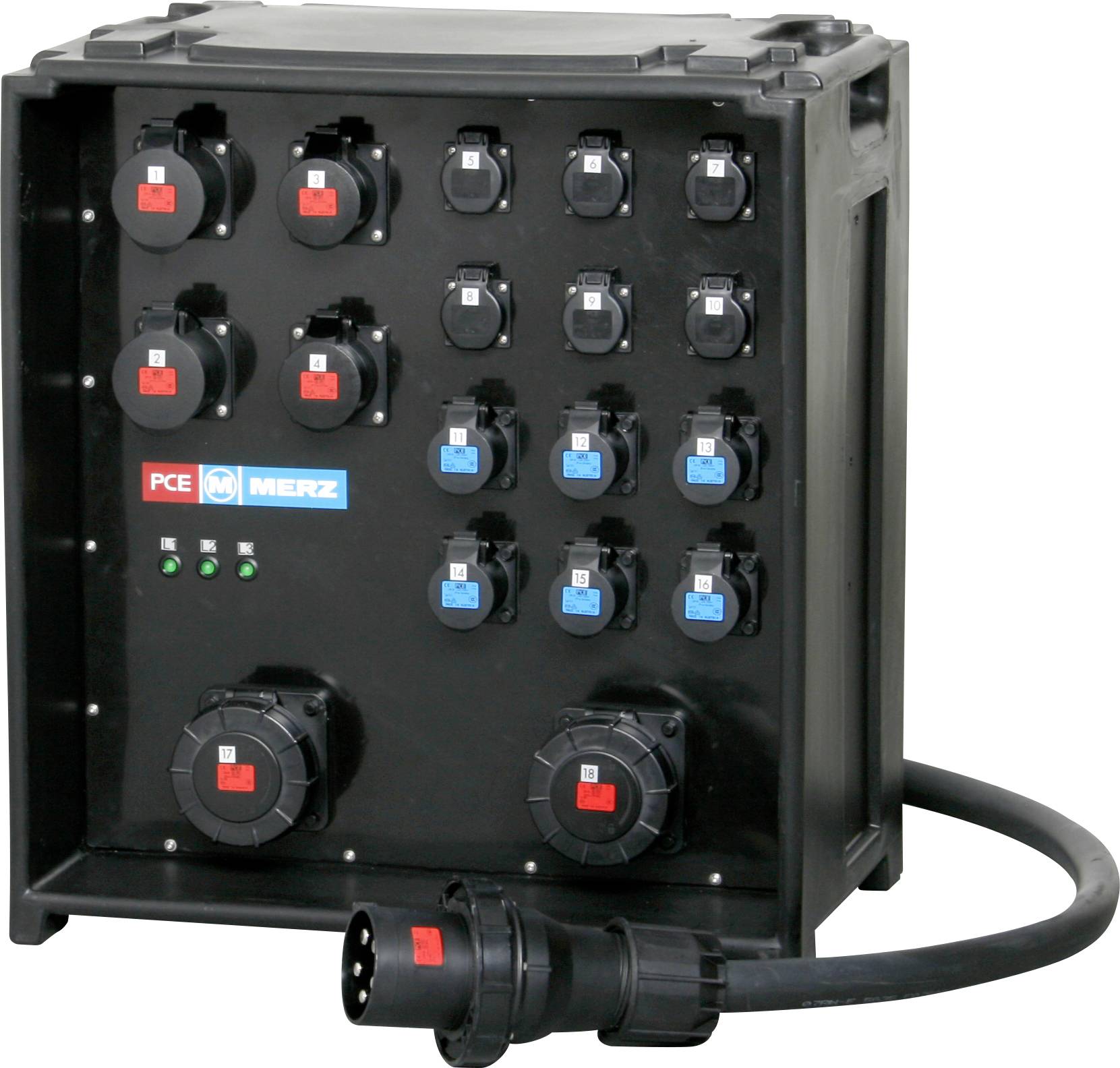

MERZ CEE power distributor M-SVE5-4 400/0032-0/G/MS MZ85803 400 V 400 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Event distributor 400 A
- Extremely robust polyethylene case
- Stackable
- Integrated carry handle
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
5
- Type A
CEE socket
- Type B
CEE socket (5-pin, 125 A)
CEE socket (5-pin, 65 A)
- Inputs
400A Powerlock
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
400 A
IP44
- Dim
(L x W x H) 400 x 600 x 670 mm
- Length
400 mm
- Width
600 mm
- Height
670 mm
- Outputs (CEE power distributors)
CEE connector (5-pin, 63 A)
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3521753 MERZ CEE power distributor M-SVE5-4 400/0032-0/G/MS MZ85803 400 V 400 A
User & Safety Instructions
User & Safety Instructions 3521753 MERZ CEE power distributor M-SVE5-4 400/0032-0/G/MS MZ85803 400 V 400 A
Description
Socket distributor plastic 277 kVA
IP44
Feed: 1x400A powerlock
FI-circuit breaker 3x63/0.3A type A
2x 125/0.5A
CEE sockets 5-pole: 3x63A; 2x125A
Earthing contact sockets 0
Circuit breaker: 9x63A C 1-pin
6 x 125 A 1-pin
Midnight design (all the sockets black)
This text is machine translated.
IP44
Feed: 1x400A powerlock
FI-circuit breaker 3x63/0.3A type A
2x 125/0.5A
CEE sockets 5-pole: 3x63A; 2x125A
Earthing contact sockets 0
Circuit breaker: 9x63A C 1-pin
6 x 125 A 1-pin
Midnight design (all the sockets black)
