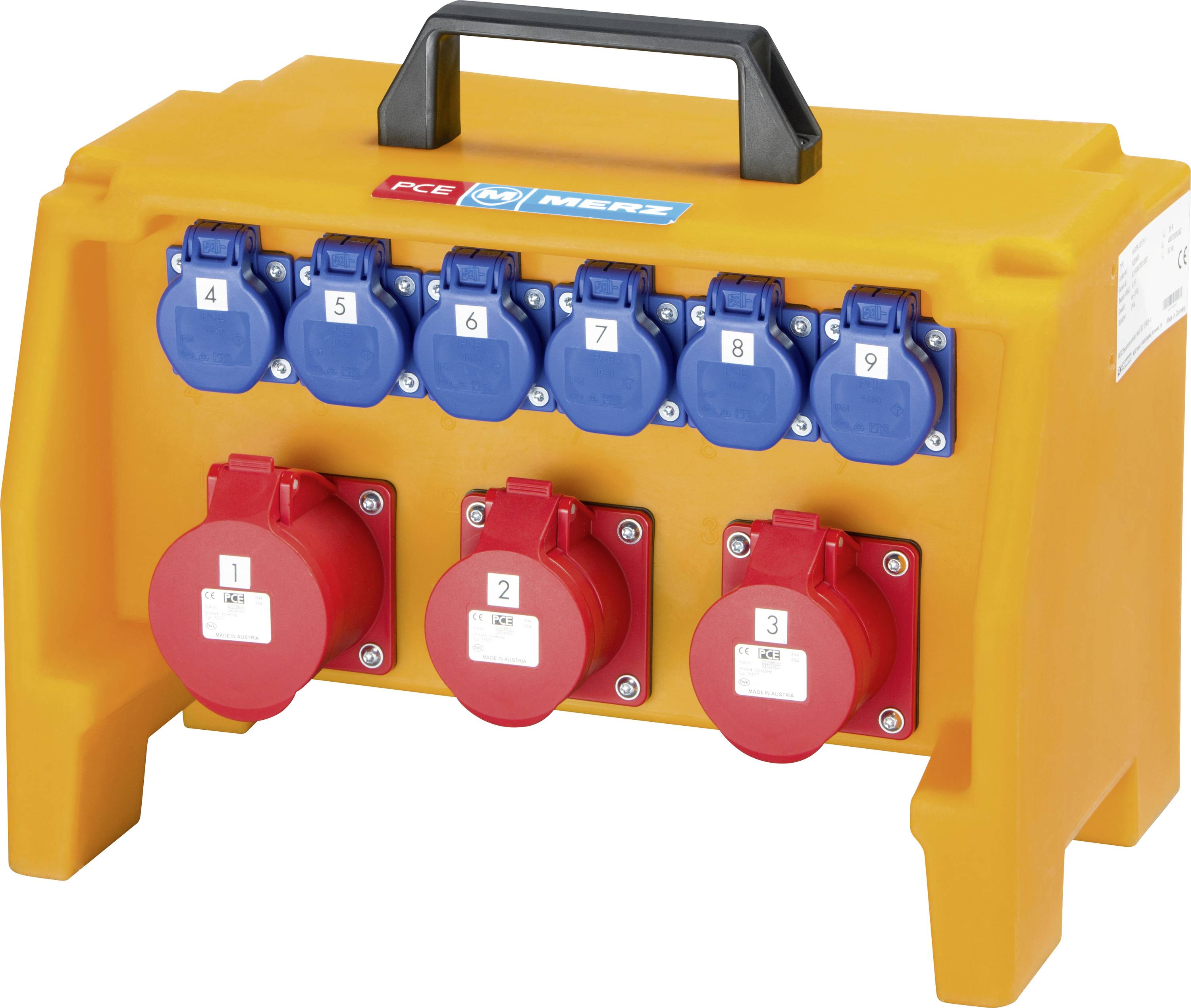

MERZ CEE power distributor M-SVPK 32/12-6 MZ69686 400 V 32 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
32 A socket distributor
- Extremely robust polyethylene case
- Stackable
- Integrated carry handle
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE socket (5-pin, 32 A)
- Type B
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 32 A)
PG socket
- No. of PG sockets
6
- Inputs
CEE socket 32 A, 5-pin
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
32 A
- Factory colour
Orange
- Dim
(L x W x H) 238 x 396 x 322 mm
- Length
238 mm
- Width
396 mm
- Height
322 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 32 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 32 A)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3521768 MERZ CEE power distributor M-SVPK 32/12-6 MZ69686 400 V 32 A
User & Safety Instructions
User & Safety Instructions 3521768 MERZ CEE power distributor M-SVPK 32/12-6 MZ69686 400 V 32 A
Description
Socket distributor plastic 22 kVA
Mounted connector: 1xCEE 32A 5-pin
FI-circuit breaker 1x40/0.03A type A
CEE sockets 5-pole: 1x16A, 2xCEE 32
Earthing contact sockets 6
Circuit breaker: 1x16A C 3-pin;3x16A C 1-pin.
This text is machine translated.
Mounted connector: 1xCEE 32A 5-pin
FI-circuit breaker 1x40/0.03A type A
CEE sockets 5-pole: 1x16A, 2xCEE 32
Earthing contact sockets 6
Circuit breaker: 1x16A C 3-pin;3x16A C 1-pin.
This text is machine translated.
