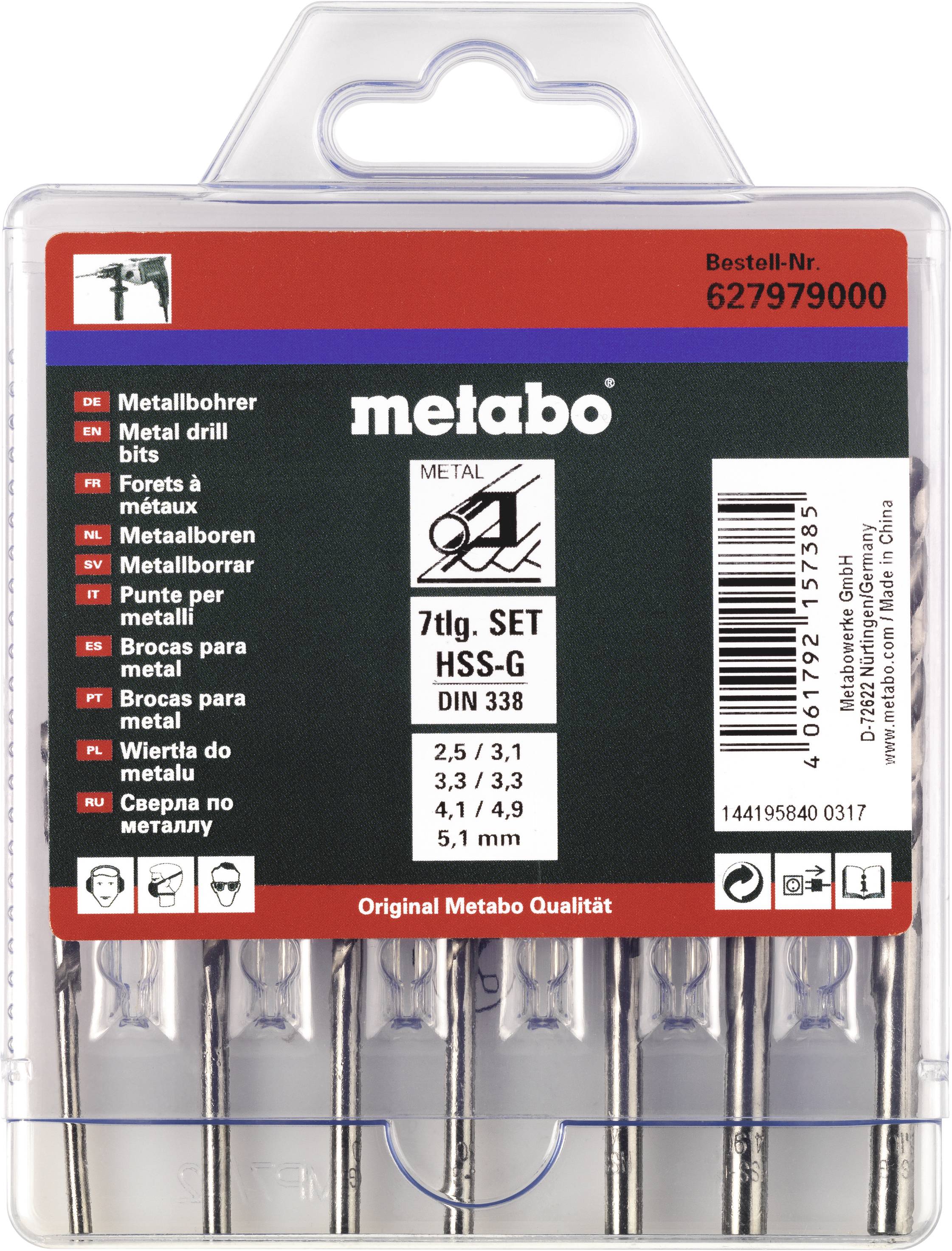

Metabo 2CPX062512R9999 HSS-G Steel Twist drill bit 7-piece 2.5 mm, 3.1 mm, 3.3 mm, 4.1 mm, 4.9 mm, 5.1 mm DIN 338 7 pc(s
EAN:
Part number:
Item no:
Product type
Twist drill bit
Drill hole Ø
2.5 mm
3.1 mm
3.3 mm
4.1 mm
4.9 mm
5.1 mm
Content
7 pc(s)
Material
Steel
Material suitability
Metal
Technical specifications
- Product type
Twist drill bit
- DIN standard
DIN 338
- Drill hole Ø
2.5 mm
3.1 mm
3.3 mm
4.1 mm
4.9 mm
5.1 mm
- Drill hole Ø tolerance limit
h 8
- Tip angle
135°
- Content
7 pc(s)
- Material
Steel
- Material properties
polished
- Material suitability
Metal
- Tensile strength (max.)
900 N/mm²
- Tool holder
Cylinder shank
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2615037 Metabo 2CPX062512R9999 HSS-G Steel Twist drill bit 7-piece 2.5 mm, 3.1 mm, 3.3 mm, 4.1 mm, 4.9 mm, 5.1 mm DIN 338 7 pc(s
Warranty Terms
Warranty Terms 2615037 Metabo 2CPX062512R9999 HSS-G Steel Twist drill bit 7-piece 2.5 mm, 3.1 mm, 3.3 mm, 4.1 mm, 4.9 mm, 5.1 mm DIN 338 7 pc(s
Description
Features
- Precision twist drill bits made of high-performance high-speed steel according to DIN 338, precision-ground, cylindrical, right-hand cutting, type N.
- Cross-ground 135° according to DIN 1412 C (from 3 mm), diameter tolerance H8
- Blank surface
- For the highest demands and precision in industry and trade
- For drilling steels and cast steel, alloyed and unalloyed, cast iron, cast iron, cast iron, cast iron, Sintered iron, nickel silver, graphite, non-ferrous metals, plastic. Up to 900 N/mm² tensile strength
- 7-part set specially tuned in plastic cassette for battery blind rivet gun NP18 LTX BL 5.0
- Ø 2.5 / 3.1 / 2x 3.3 / 4.1 / 4.9 / 5.1 mm.
- This text is machine translated.
