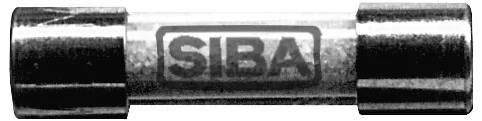

Micro fuse (Ø x L) 5 mm x 20 mm 20.00 A 250 V AC SIBA 1 pc(s)
Product type
Micro fuse
Nominal voltage
250 V AC
Nominal current - rounded value
20 A
Length
20 mm
(Ø)
5 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SIBA G-fuse link, 10x38mm 5021526 1.000VDC, 20A photovoltaic
- Ceramic tube, opaque with solvent filling
Technical specifications
- Housing material: Glass tube, transparent
- Material connections: Nickel-plated copper alloy
- Melting Integral: 11 A²/s.
- Rated breaking capacity 35 A.
- Voltage drop 120 mV
- Product type
Micro fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 5 mm x 20 mm
- Nominal current
20.00 A
- Nominal current - rounded value
20 A
- Length
20 mm
- (Ø)
5 mm
- Certification marks
UL IEC 60 269-6, UL 248-13
- Content
1 pc(s)
- Type
5021526.20
- Weight
10.0 g
Documents & Downloads
Datasheet
Datasheet 3842450 Micro fuse (Ø x L) 5 mm x 20 mm 20.00 A 250 V AC SIBA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3842450 Micro fuse (Ø x L) 5 mm x 20 mm 20.00 A 250 V AC SIBA 1 pc(s)
Description
For photovoltaic applications
