MicroConnect MC-HDMIKVMEXT-70M

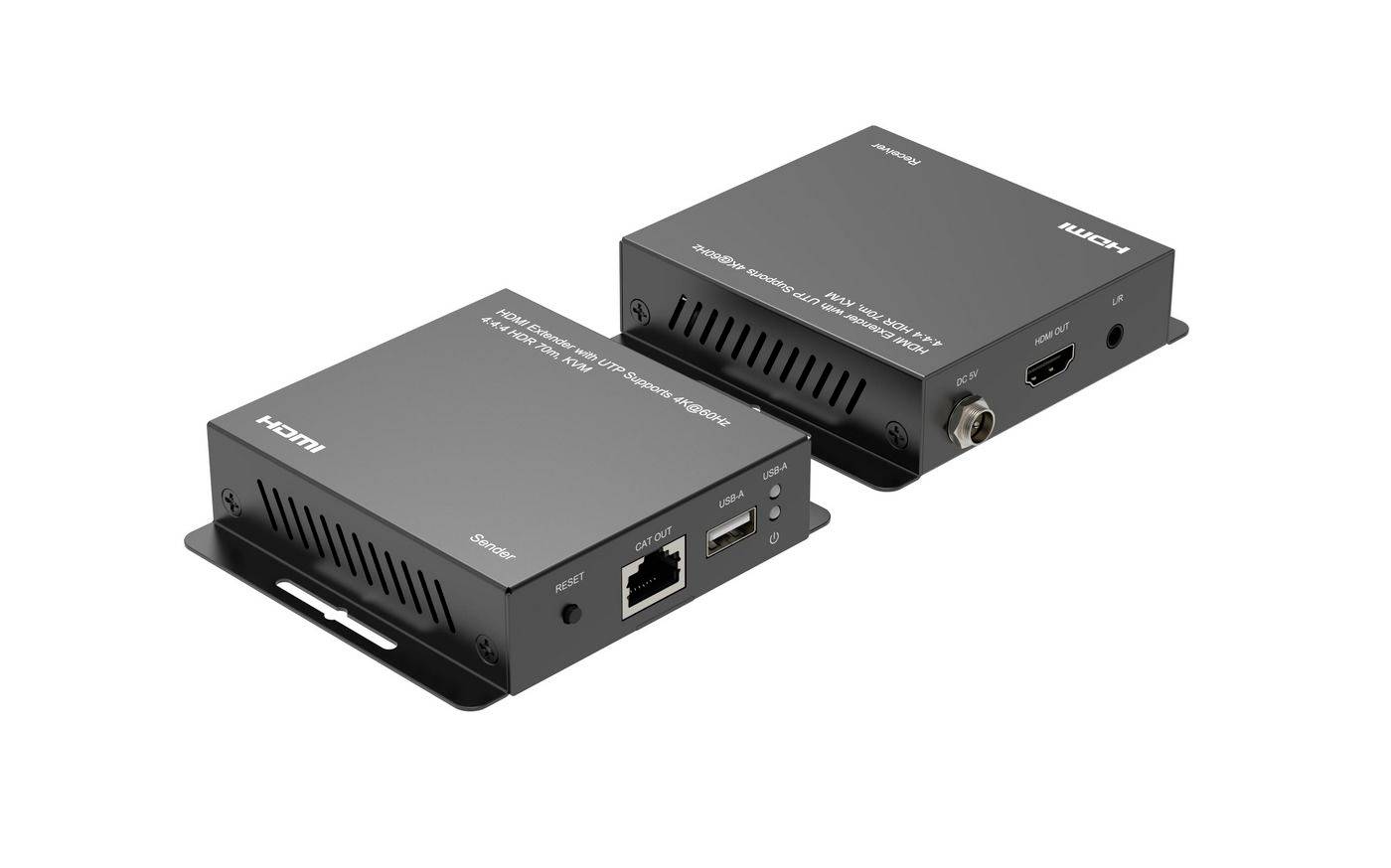

Two black HDMI over CAT extender boxes shown at an angle, with HDMI, Ethernet, and power ports visible.
Side view of a small black LecNet device showing controls and ports: reset, Cat input, USB, I/O, DC power, HDMI out, and HDMI in.
Two-view image of a HI-LIGHT two-channel HDMI switcher box, showing front and rear ports including reset, CAT OUT, USB-A, DC 5V, HDMI OUT, and L/R audio.

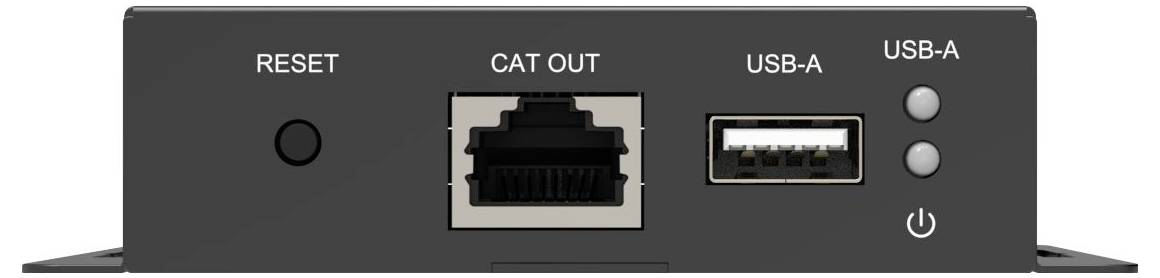

Close-up of a device front panel with reset button, CAT OUT Ethernet port, USB-A port, two status LEDs, and power symbol.

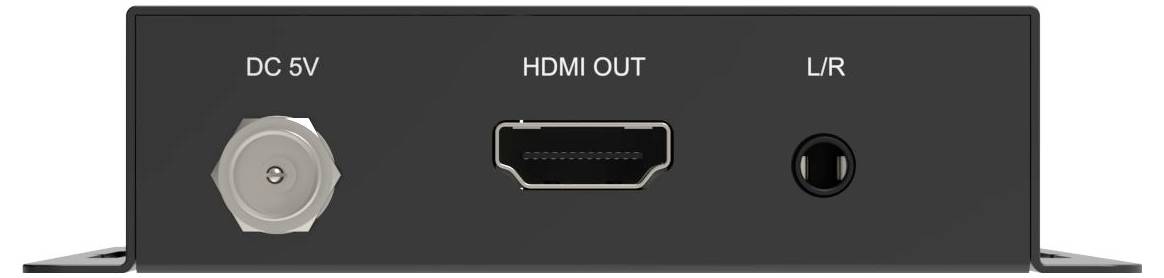

Close-up of a device back panel showing three labeled ports: DC 5V power input, HDMI OUT, and L/R audio output.

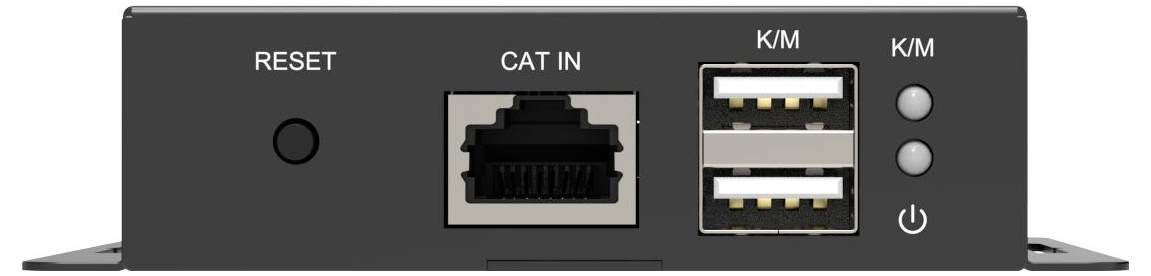

Close-up of a network device front panel with a reset button, a CAT IN port, two K/M USB ports, and power/status lights.

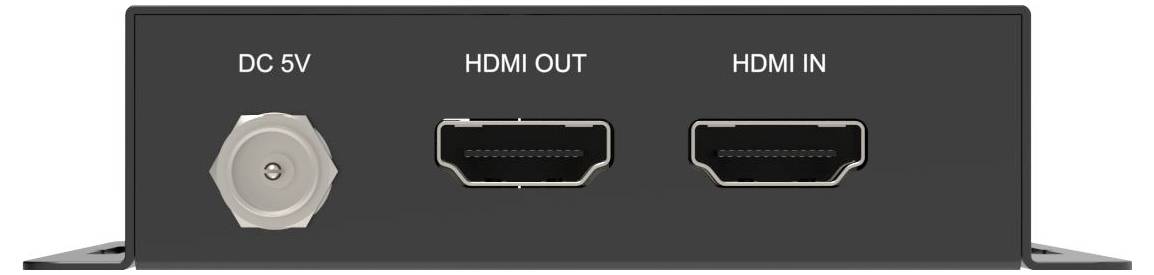

Rear panel of a device showing a DC 5V power input, HDMI OUT port, and HDMI IN port.

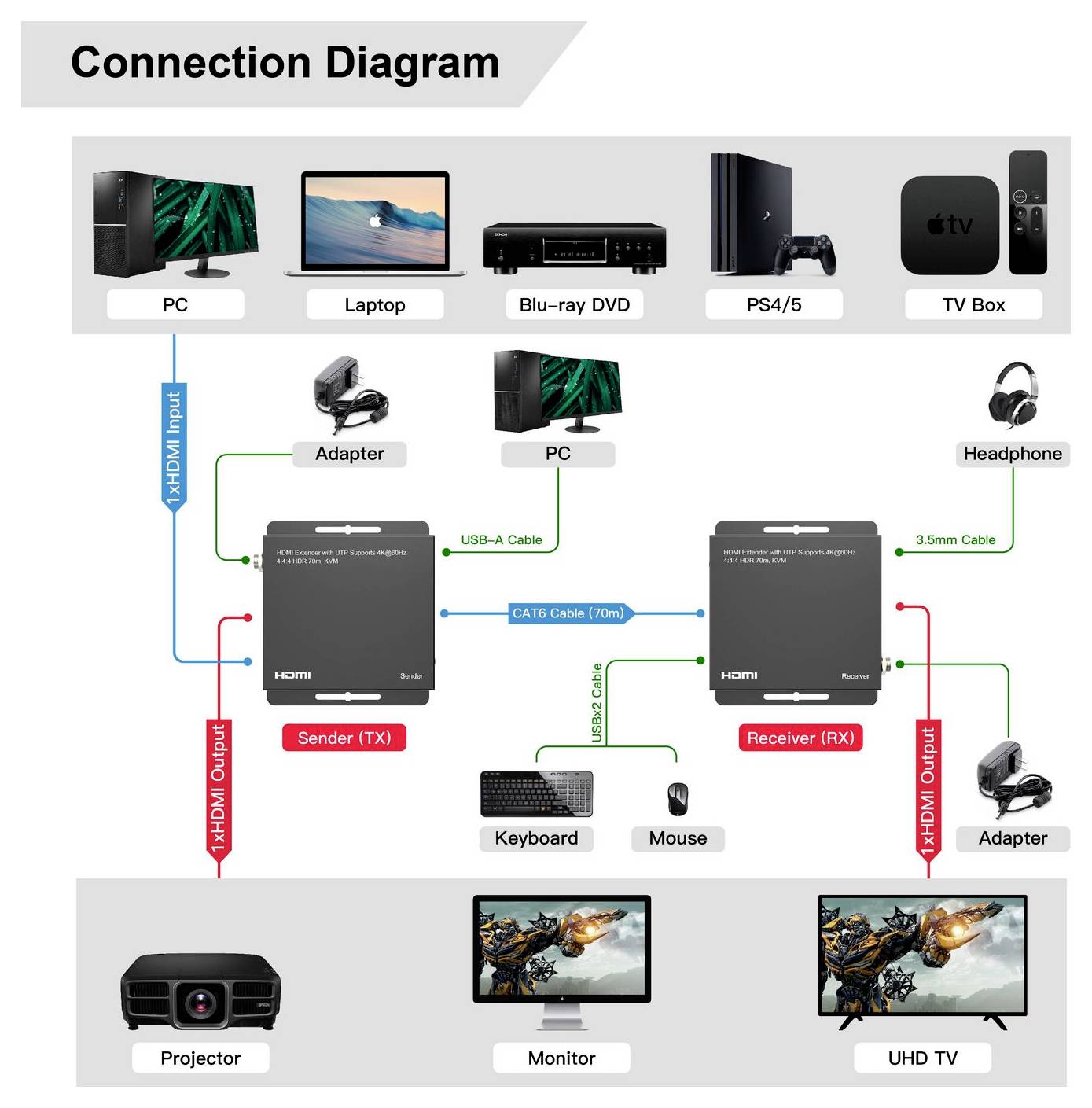

Connection diagram showing HDMI sources (PC, laptop, Blu-ray/DVD, PS4/5, TV box) feeding a sender and receiver over Cat6, then outputting to a projector, monitor, and UHD TV with USB, audio, and peripheral connections.
1/8
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Factory colour

Black

Weight

316 g

Supported monitors

2

Display resolution

3840 x 2160 Pixel

Frame rate

60 Hz

No. of USB A 2.0 ports

3 x

HDCP

Yes

Material

Aluminium

Transfer type

Corded

UKCA

yes

RJ-45 ports quantity

2

RJ-45 ports quantity (receiver)

1

RJ-45 ports quantity (transmitter)

1

Transmitter local video port

yes

Mounting bracket(s) included

yes

Manual

yes

Easy to install

yes

Receiver local video ports quantity

1

Receiver USB Type-A ports quantity

2

Quick installation guide

yes

PC Audio out

yes

Plug and Play

yes

Maximum transfer distance

70 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3841747 MicroConnect MC-HDMIKVMEXT-70M
