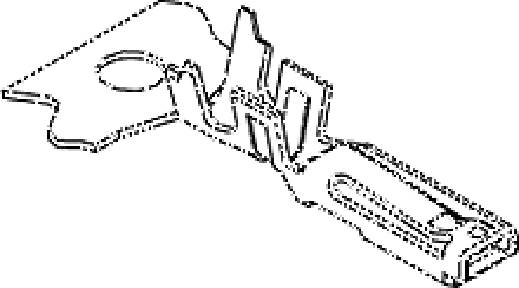

Image similar
MizuP25 501488100 Molex Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Bag
Product type
Crimp contact
Connector type
Socket
AWG
22 - 20
Connection
Crimp
Press-in
Datasheet (PDF)
Technical specifications
- Packaging type
Bag
- Product type
Crimp contact
- Connector type
Socket
22 - 20
- Connection
Crimp
Press-in
- Manufacturer part #
501488100
- Content
1 pc(s)
- Contact material
Phosphorus bronze tin plated
- Type
501488100
- Engineering Part No
50148-8100
- Engineering Series Name
2.5 SP female term
- Engineering Series No
50148
Documents & Downloads
Datasheet
Datasheet 3036053 MizuP25 501488100 Molex Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3036053 MizuP25 501488100 Molex Content: 1 pc(s)
Circuit diagramm
Circuit diagramm 3036053 MizuP25 501488100 Molex Content: 1 pc(s)
Description
2.50mm Pitch Mizu-P25 Crimp Terminal, 50148, Bag
