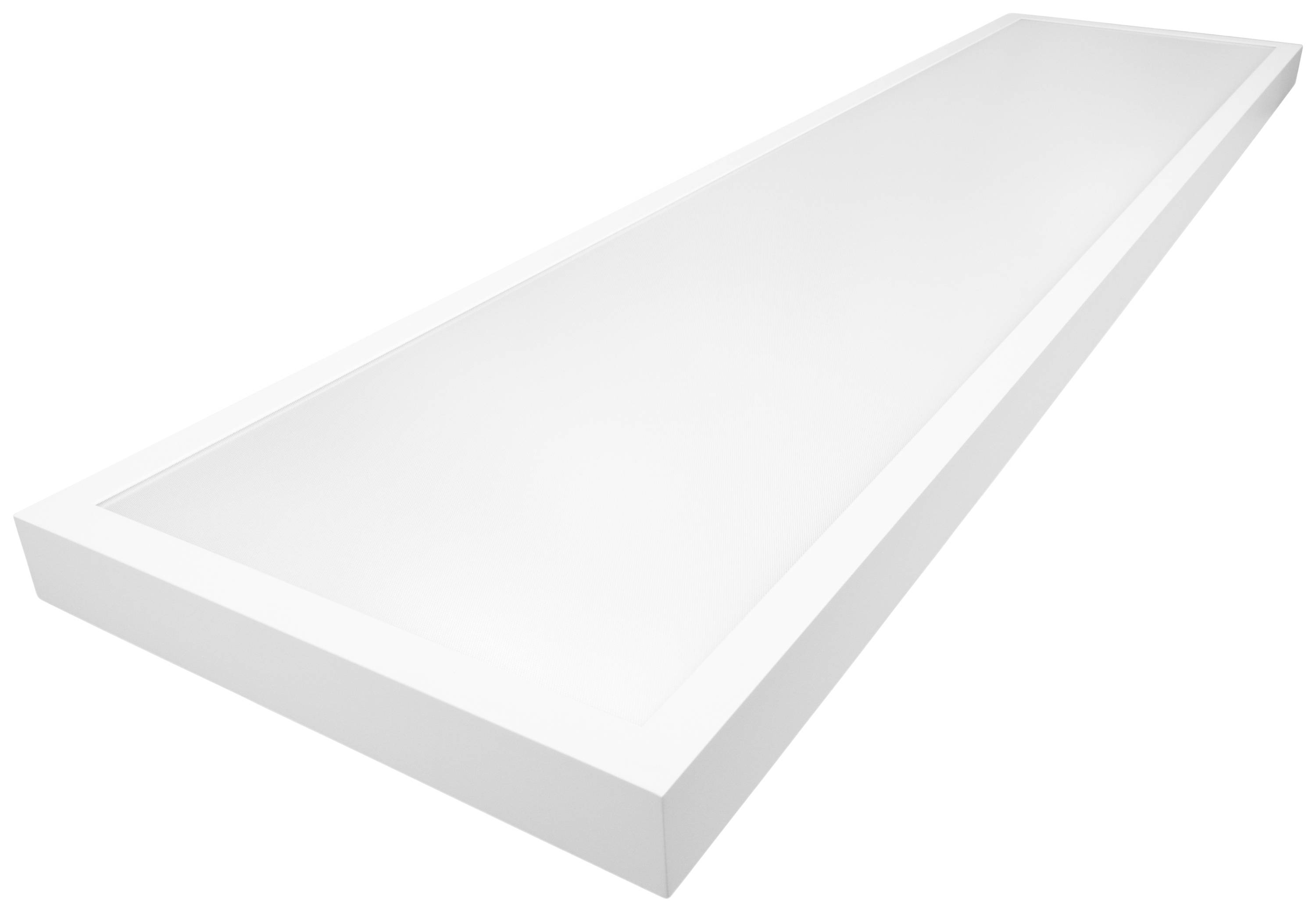

mlight 81-2131 LED panel 40 W Warm white, Neutral white White
EAN:
Part number:
Item no:
Highlights & Details
EasyFix Pro panel
- Power= 40 W
- Total luminous flux= 4800 lm
- Colour temperature= 3000 K
- Warm white, Neutral white
Technical specifications
- Product type
LED panel
- Type
Rectangular
- Operating voltage
230 V
- Bulb type
LED (monochrome)
Built-in LED
- Rating per bulb
40 W
40 W
3000 K
- Colour
Warm white
Neutral white
4800 lm
- Total luminous flux
4800 lm
- Light features
Incl. ballast
- Radiation angle
90°
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
PMMA
Steel plate
- Width
1250 mm
- Height
43 mm
- Length
325 mm
n.rel.
No
- Light bulb included
Yes
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3305244 mlight 81-2131 LED panel 40 W Warm white, Neutral white White
Description
40W, 1050mA, 3000K/4000K, 4550/4800lm, IP40
This text is machine translated.
This text is machine translated.
Features
- Versatile, square LED on/under-cabinet lamp; on/under-cabinet lamp for indoor ceiling mounting
- Prismatic PMMA light release plate
- Suitable for screen work in accordance with EN 12464-1, UGR19
- Supplied with electronic LED driver, not dimmable
- Beam angle: 90°
- Dimmable: Optional DALI / 1-10V / PUSH-DIMM / phase section
- Through-wiring capability: No.
- Colour temperature 3000K/4000K
- Colour rendering index:Ra > 80
- Light fixtures made of aluminum
- Housing color: White
- L/B VALUE L80/B50
- Service life: Approx. 50,000 h at 25°C.
- Light color: Warm white/neutral white
- Driver: Included, pre-mounted
- Switching cycles 20,000
- Protection class: IP40
- Protection class: I
- Temperature range -10°C to +30°C.
