mlight 81-3278 81-3278 LED hall light LED (monochrome) LED 55 W, 75 W, 100 W Black
EAN:
Part number:
Item no:
Highlights & Details
LED HALL LAMP HIGHBAY 55W/75W/100W, MULTI-SWITCH
- Power= 55 W, 75 W, 100 W
- Total luminous flux= 15000 lm
- Colour temperature= 3000 K
- Warm white, Neutral white, Cool white
Technical specifications
- Dim
(Ø x H) 248 mm x 158 mm
- Type
Circular
- Operating voltage
230 V
- No. of bulbs
1
- Product type
LED hall light
- Width
248 mm
- Bulb type
LED (monochrome)
- Height
158 mm
LED
- Rating per bulb
100 W
55 W
75 W
100 W
- (Ø)
248 mm
- Light features
Dimmable
- Protection class
I
IP65
- Factory colour
Black
- Material
Aluminium
PC
- Weight
1.3 kg
n.rel.
- Colour rendering index
83
- Colour
Warm white
Neutral white
Cool white
- Light bulb included
Yes
3000 K
- Colour temperature (max.)
5000 K
- Colour temperature (min.)
3000 K
- Colour temperature range
3000 - 5000 K
- Total luminous flux
15000 lm
15000 lm
- UKCA
not relevant
Documents & Downloads

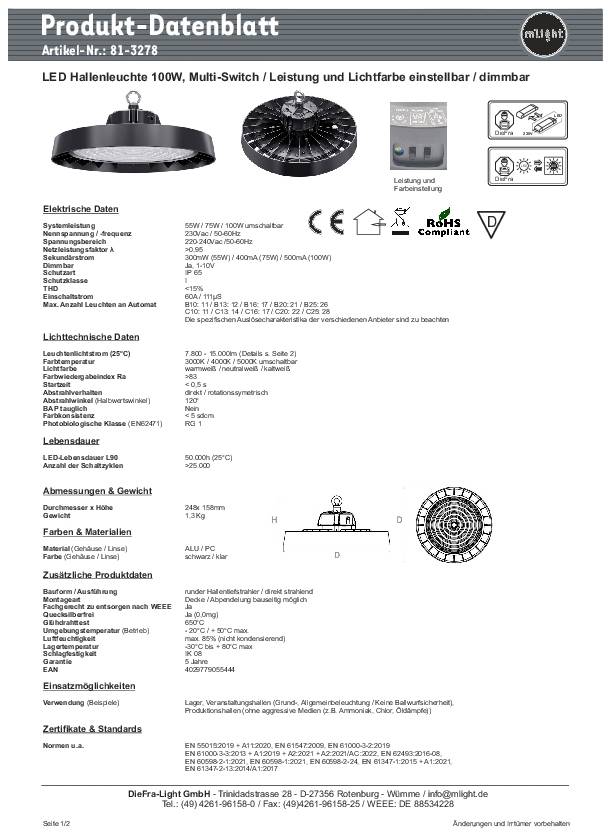

User & Safety Instructions
User & Safety Instructions 3305247 mlight 81-3278 81-3278 LED hall light LED (monochrome) LED 55 W, 75 W, 100 W Black
Description
230V, 3000K/4000K/5000K, IP65, 160LM/W, 120°
This text is machine translated.
This text is machine translated.
Features
- LED hall light for fitting to ceilings
- Highly efficient LED module with up to 160 lm/W
- Round lamp casing made of die-cast aluminum with outer cooling fins for optimized passive cooling
- Pre-arranged lens optics from clear and shock-resistant PC
- External LED driver isolated from the casing, dimmable; Outer diameter: 248mm; Height (incl. driver): 158mm
- Weight: 1.30kg;
- Power consumption: 55-100W, adjustable via DIP-switch
- Luminous flux: 7800 to 15000lm
- Beam angle: 120°
- Dimmable: Yes, 1-10V
- Through-wiring capability: No.
- COLOR TEMPERATURE 3000K, 4000K, 5000K
- Colour rendering index:Ra 80
- Light fixtures made of die-cast aluminum
- Black enclosure
- L/B VALUE L90/B10
- Service life: Approx. 50,000 h at 25°C.
- Light color: Warm white, neutral white, cold white
- Driver: Mounted
- Switching cycles 25,000
- Protection system: IP65
- IK Value: IK08
- Protection class: I
- With 6 bits. D-symbol for use in fire-hazardous operating areas (DIN EN 60598-2-24)
- Temperature range -20°C to +40°C.
