mlight CLIP ON Sensor 81-4038 LED panel EEC: F (A - G) 18 W Warm white, Natural white, Cool white White
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED mounting panel CLIP ON sensor
- Power= 18 W
- Total luminous flux= 1530 lm
- Warm white, Natural white, Cool white
Technical specifications
- Ceiling cut-out: 55 x 175 mm
- Product type
LED panel
- Type
Circular
- Operating voltage
230 V
- Bulb type
LED (monochrome)
- Rating per bulb
18 W
18 W
- Energy consumption
18 kWh/1000h
- Colour
Warm white
Natural white
Cool white
- Total luminous flux
1530 lm
- Light features
Incl. sensor
- Radiation angle
110°
- Protection class
II
IP20
- Factory colour
White
- Material
Aluminium
PC
- Weight
490 g
- Height
20 mm
- (Ø)
227 mm
F (A - G)
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2585338 mlight CLIP ON Sensor 81-4038 LED panel EEC: F (A - G) 18 W Warm white, Natural white, Cool white White
User & Safety Instructions
User & Safety Instructions 2585338 mlight CLIP ON Sensor 81-4038 LED panel EEC: F (A - G) 18 W Warm white, Natural white, Cool white White
Description

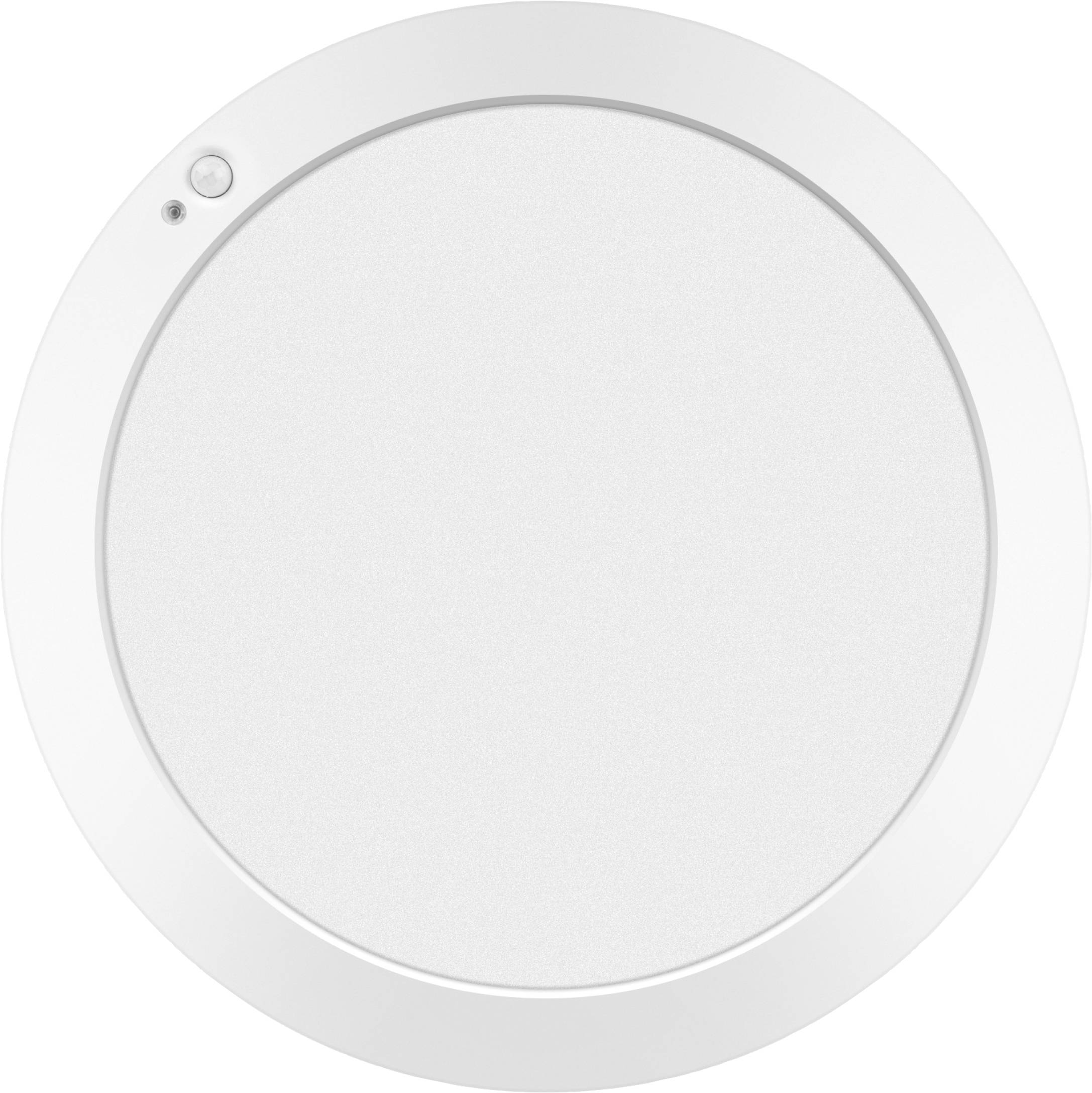

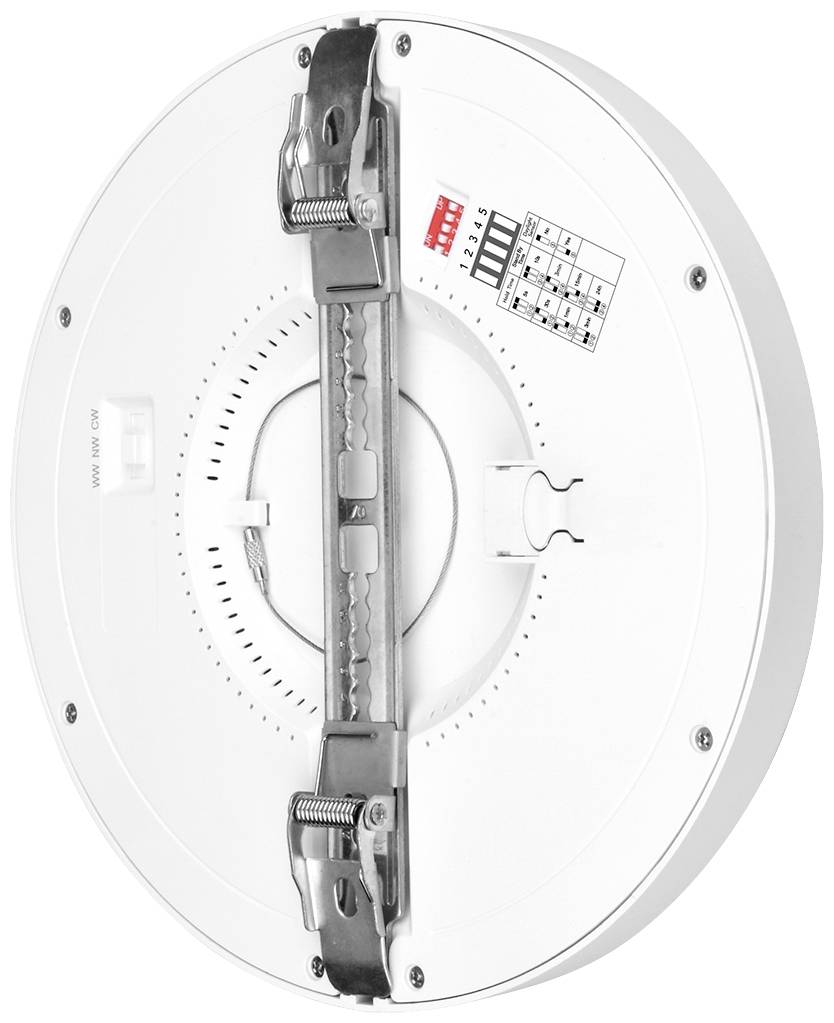

Mounting panel Clip On Panel with sensor. Symmetrically wide-radiating, round LED installation panel, for mounting in sawed ceiling openings. With integrated, adjustable Daylight Sensor (detection range, light duration and adjustable daylight sensor). Adjustable quick-mounting springs. Suitable for different, already existing ceiling cut-outs.
This text is machine translated.
This text is machine translated.
Scope of delivery
- LED mounting panel
- User manual.
