mlight Trace 18W CCT LED plinth lighting LED (monochrome) 18 W EEC: F (A - G) Cool white, Neutral white, Warm white Whit
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Trace chassis lamp
- Power= 18 W
- Total luminous flux= 1916 lm
- Cool white, Neutral white, Warm white
Technical specifications
- Product type
LED plinth lighting
- Type
Tube
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
- Length
1140 mm
- Width
23.5 mm
- Rating per bulb
18 W
- Height
36 mm
18 W
- Energy consumption
18 kWh/1000h
- Colour
Cool white
Neutral white
Warm white
- Total luminous flux
1916 lm
- Light features
Incl. switch
- Radiation angle
120°
- Protection class
II
IP20
- Factory colour
White
- Material
PC
- Weight
222 g
- Dim
(L x W x H) 1140 x 23.5 x 36 mm
F (A - G)
- Light bulb included
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2585344 mlight Trace 18W CCT LED plinth lighting LED (monochrome) 18 W EEC: F (A - G) Cool white, Neutral white, Warm white Whit
User & Safety Instructions
User & Safety Instructions 2585344 mlight Trace 18W CCT LED plinth lighting LED (monochrome) 18 W EEC: F (A - G) Cool white, Neutral white, Warm white Whit
Description

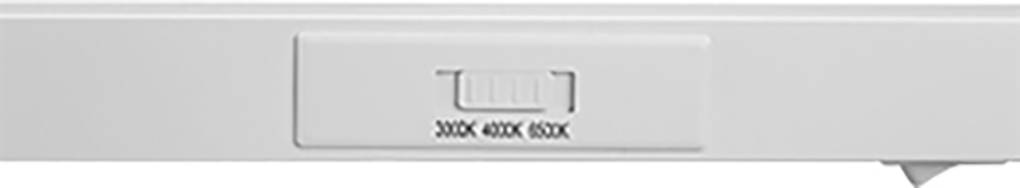

Universally applicable, LED on and under-cabinet lamp with a direct light distribution for single or light band applications - with color selection switch (3,000K / 4,000K / 6,500K) and rocker switchOn the lamp for individual applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Trace
- Fitting Material
- User manual.
