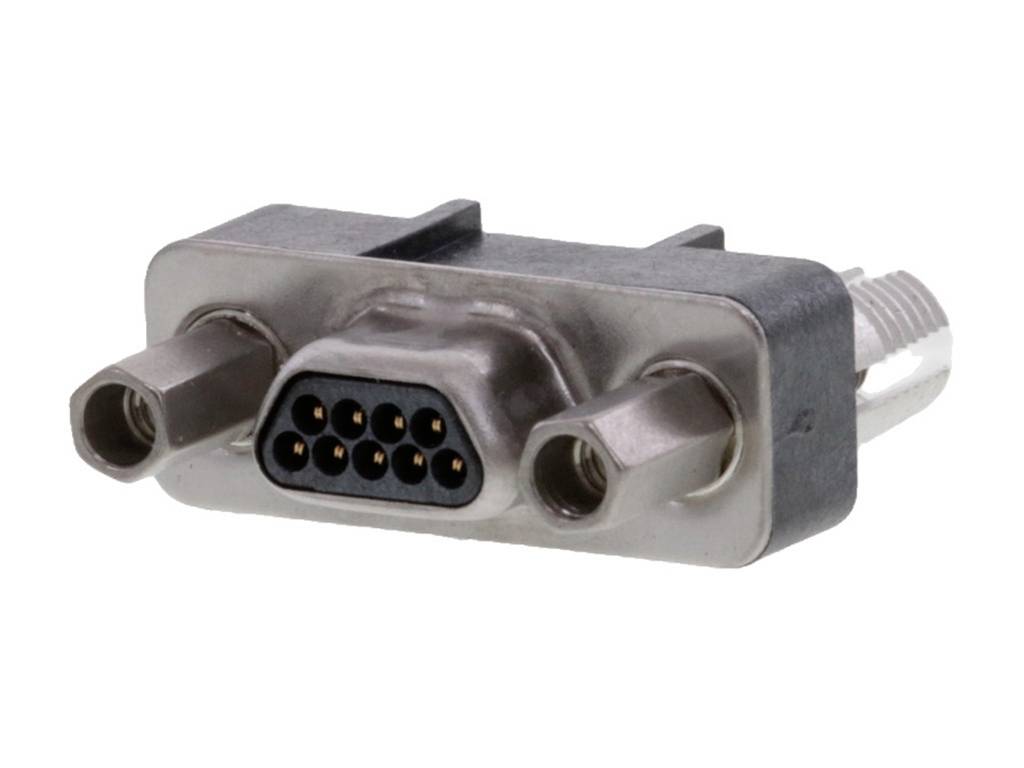

Image similar

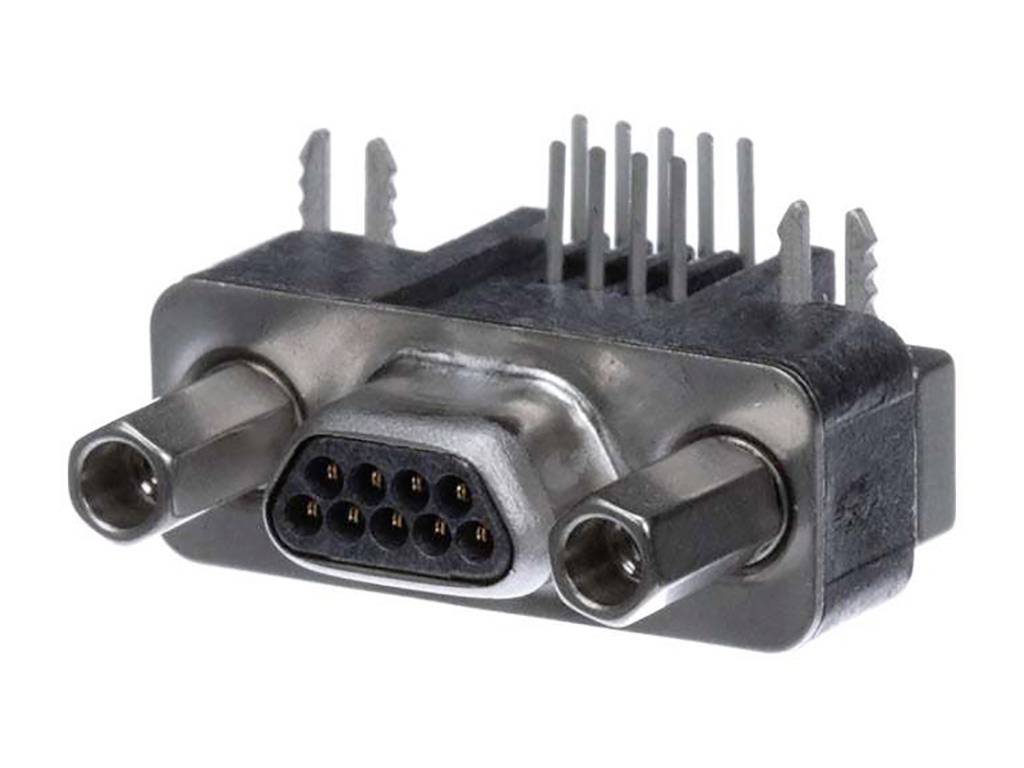

Molex 836119006 D-SUB connector Number of pins: 9 Solder pins 1 pc(s) Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
D-SUB connector
Connector type
Socket, right angle
Number of pins
9
Connection
Solder pins
Datasheet (PDF)
Highlights & Details
Molex 836119006 CIRCUIT STYLE (CM)
- D-SUB connector
- Number of pins: 9
Our service for you
Technical specifications
- Packaging type
Tube
- Product type
D-SUB connector
- Connector type
Socket, right angle
- Number of pins
9
- Connection
Solder pins
- Content
1 pc(s)
- Manufacturer part #
836119006
- RoHS-compliant
Yes
- Type
836119006
- Engineering Part No
83611-9006
- Engineering Series Name
CIRCUIT STYLE (CM)
- Engineering Series No
83611
Documents & Downloads
Datasheet
Datasheet 2761448 Molex 836119006 D-SUB connector Number of pins: 9 Solder pins 1 pc(s) Tube
User & Safety Instructions
User & Safety Instructions 2761448 Molex 836119006 D-SUB connector Number of pins: 9 Solder pins 1 pc(s) Tube
Description
1.27mm Pitch Commercial Micro-D, PCB Mount, Right-Angle Plug, 9 Circuits
