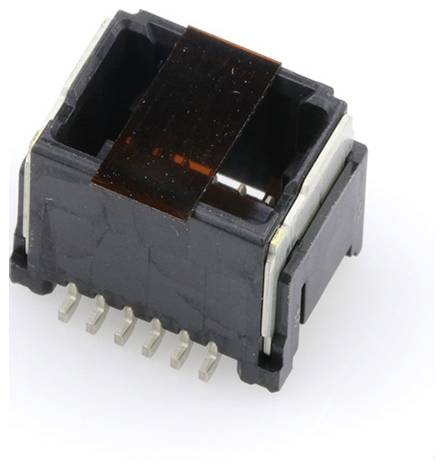

Image similar
Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 505433-1291 1 pc(s) Tape on Full re
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
1.25 mm
Total number of pins
12
Packaging type
Tape on Full reel
Datasheet (PDF)
Highlights & Details
MOLEX 505433-1291
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 12
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Features
+ locking mechanism
- CS
1.25 mm
- Total number of pins
12
- Content
1 pc(s)
- Connector coating thickness
0.1 µm
- Manufacturer part #
505433-1291
- Factory colour
Black
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Type
505433-1291
Documents & Downloads
Datasheet
Datasheet 3366054 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 505433-1291 1 pc(s) Tape on Full re
User & Safety Instructions
User & Safety Instructions 3366054 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 1.25 mm 505433-1291 1 pc(s) Tape on Full re
Description
1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, 0.10µm Gold Plating, Positive Lock, 12 Circuits, with Pick-and-Place Tape, Black
