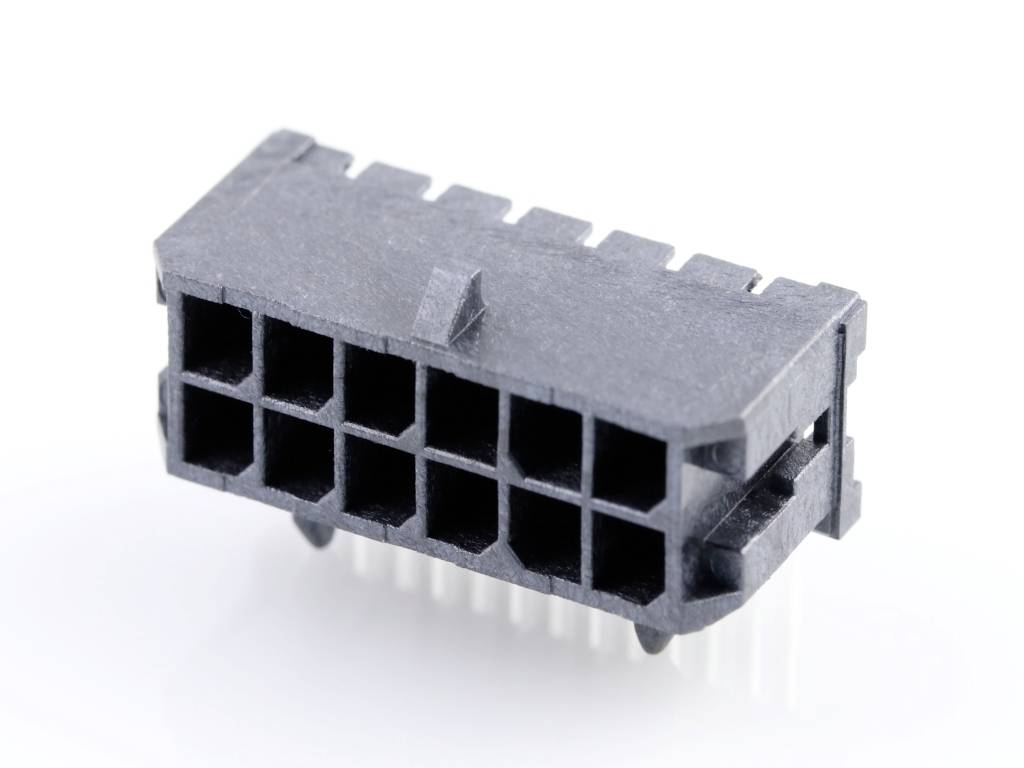

Image similar
Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 3.00 mm 430451202 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3.00 mm
Total number of pins
12
Packaging type
Tray
Datasheet (PDF)
Highlights & Details
Molex 430451202 MICRO-FIT HDR ASSY
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 12
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
3.00 mm
- Pins per row
6
- Total number of pins
12
- Content
1 pc(s)
- Connection
Print
- Actuation direction
Parallel (to the PCB)
- Case material
Plastic
- Manufacturer part #
430451202
- Factory colour
Black
- Insulation material
Plastic
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
430451202
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
43045
Documents & Downloads
Datasheet
Datasheet 2760159 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 3.00 mm 430451202 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760159 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 3.00 mm 430451202 1 pc(s) Tray
Description
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 12 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Glow-Wire Capable, Black
