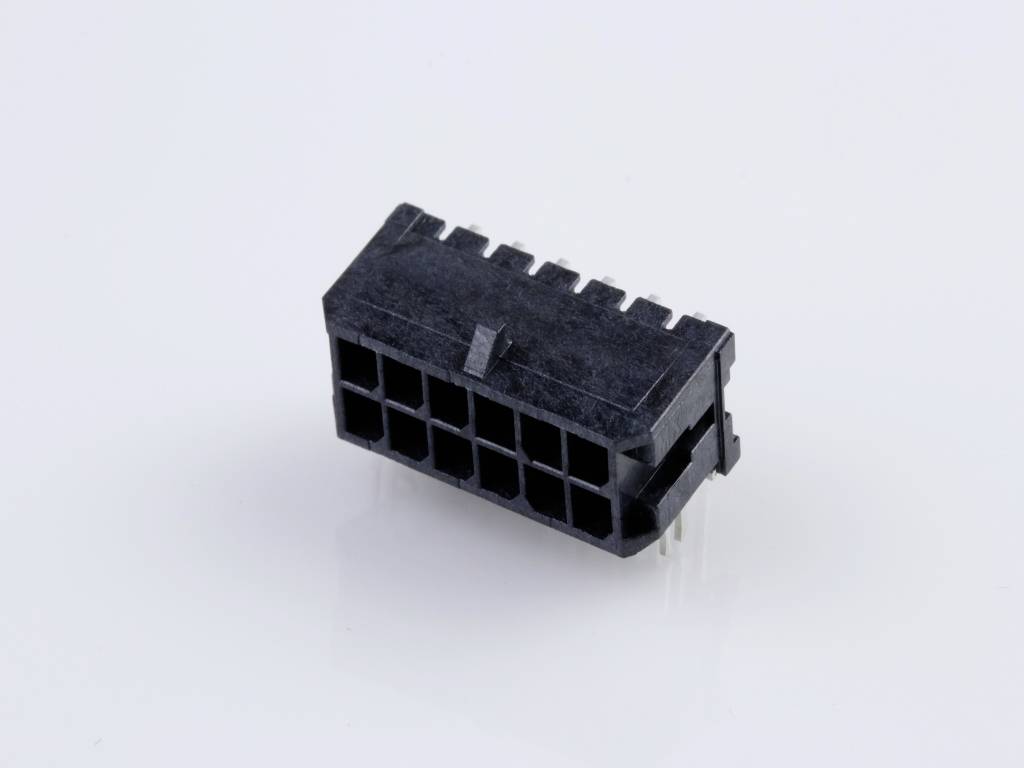

Image similar
Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 3 mm 430451223 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
2
CS
3 mm
Total number of pins
12
Packaging type
Tray
Datasheet (PDF)
Highlights & Details
Molex 430451223 MICRO-FIT HDR ASSY
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 12
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- No. of rows
2
- Connector system
wire-to-board
- Features
+ snap-in flange
- CS
3 mm
- Pins per row
6
- Total number of pins
12
- Content
1 pc(s)
- Connection angle
90°
- Manufacturer part #
430451223
- Factory colour
Black
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
430451223
- Engineering Part No
43045-1223
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
Micro-Fit
Documents & Downloads
Datasheet
Datasheet 2904268 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 3 mm 430451223 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2904268 Molex Built-in pin strip (standard) Total number of pins 12 Contact spacing: 3 mm 430451223 1 pc(s) Tray
Description
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 12 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black
