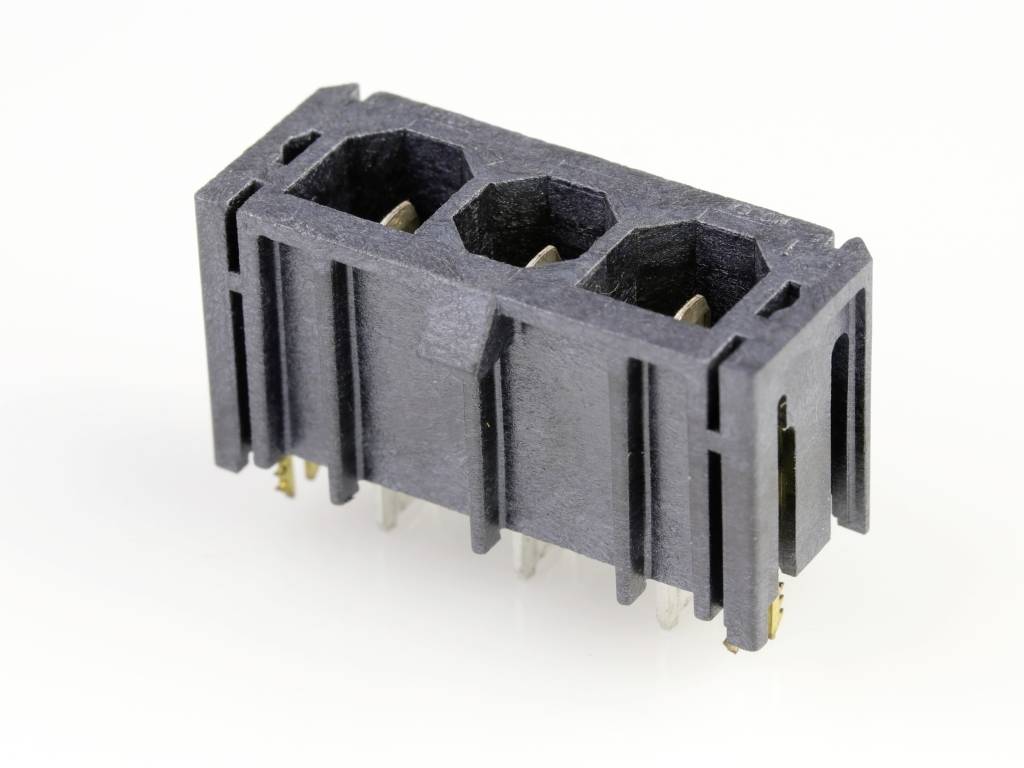

Image similar
Molex Built-in pin strip (standard) Total number of pins 3 1720420302 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
Total number of pins
3
Packaging type
Tray
Features
+ locking mechanism
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Molex 1720420302 Super-Sabre Vert Hdr
- Content: 1 pc(s)
- Total number of pins: 3
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in pin strip (standard)
- Features
+ locking mechanism
- Total number of pins
3
- Content
1 pc(s)
- Connection
Soldering
- Manufacturer part #
1720420302
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
1720420302
- Engineering Series Name
Super-Sabre Vert Hdr
- Engineering Series No
172042
Documents & Downloads
Datasheet
Datasheet 2760200 Molex Built-in pin strip (standard) Total number of pins 3 1720420302 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760200 Molex Built-in pin strip (standard) Total number of pins 3 1720420302 1 pc(s) Tray
Description
Super Sabre Vertical Header, 3 Circuit, Short Solder Tail with Board Lock, Complies with UL1977 Finger Proof Standards, Glow-Wire Capable
