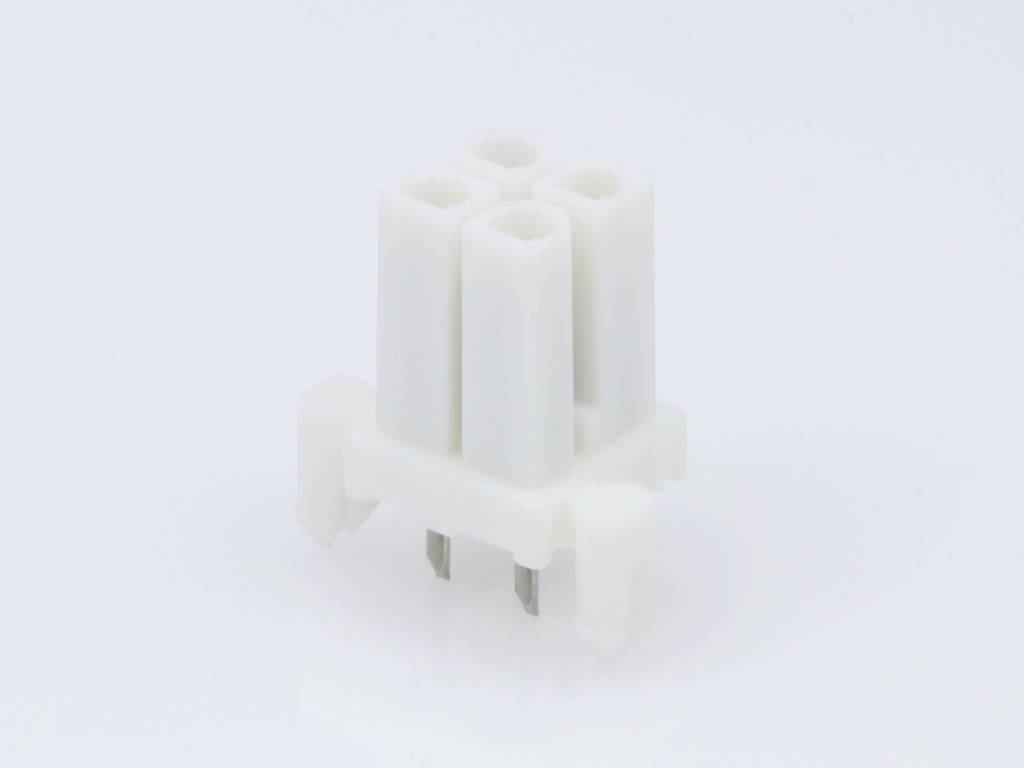

Image similar
Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 4.2 mm 15247043 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Built-in SIL socket (standard)
No. of rows
2
CS
4.2 mm
Total number of pins
4
Packaging type
Tray
Datasheet (PDF)
Highlights & Details
Molex 15247043 MINIFIT BD/BD VERT R
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 4
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Built-in SIL socket (standard)
- No. of rows
2
- Features
+ snap-in nibs
- CS
4.2 mm
- Pins per row
2
- Total number of pins
4
- Content
1 pc(s)
- Connection angle
90°
- Connector coating thickness
0.8 µm
- Manufacturer part #
15247043
- Connector contact surface
Gold (Au)
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
15247043
- Engineering Part No
42385-04B2
- Engineering Series Name
MINIFIT BD/BD VERT R
- Engineering Series No
MINIFIT
Documents & Downloads
Datasheet
Datasheet 2905376 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 4.2 mm 15247043 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2905376 Molex Built-in SIL socket (standard) Total number of pins 4 Contact spacing: 4.2 mm 15247043 1 pc(s) Tray
Description
Mini-Fit BMI Receptacle Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-In Plastic Pegs, 0.80µm Gold (Au), UL 94V-0, 4 Circuits
