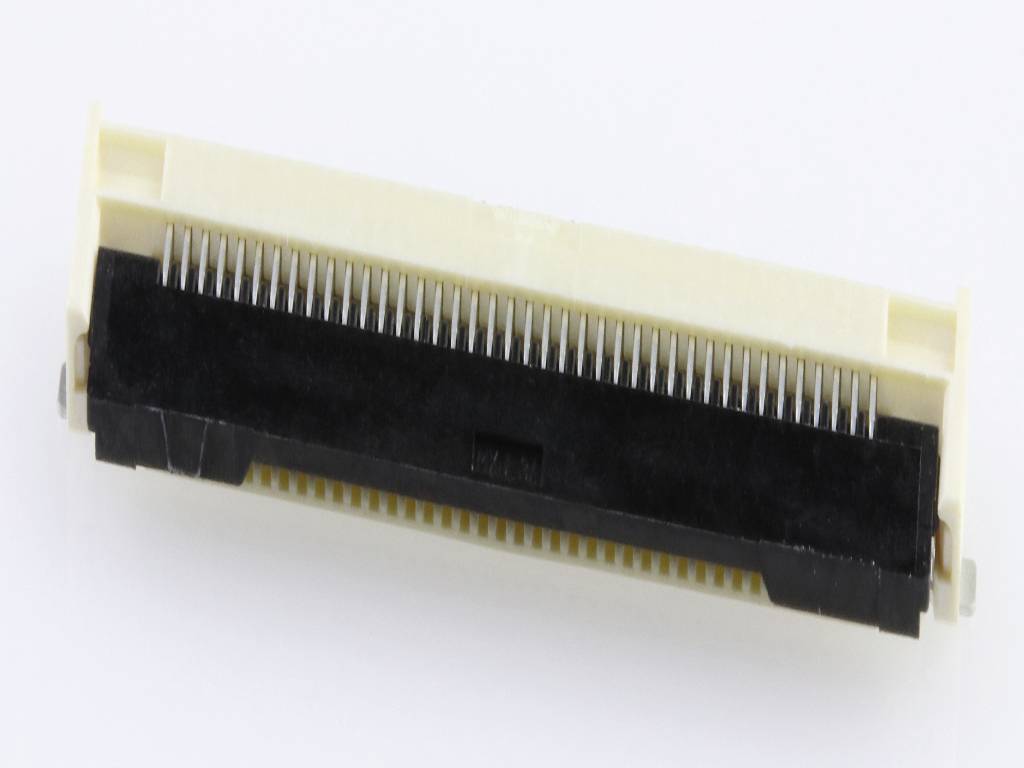

Image similar
Molex FFC/FPC connector Total number of pins 40 Contact spacing: 0.50 mm 5052784033 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
FFC/FPC connector
CS
0.50 mm
Total number of pins
40
Packaging type
Piece
Connector system
wire-to-board
Datasheet (PDF)
Highlights & Details
Molex 5052784033 0.5 FPC F/F FS19
- Content: 1 pc(s)
- Total number of pins: 40
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
FFC/FPC connector
- Connector system
wire-to-board
- CS
0.50 mm
- Total number of pins
40
- Content
1 pc(s)
- Connection
SMD
- Connection angle
90°
- Actuation direction
Parallel (to the PCB)
- Manufacturer part #
5052784033
- Height
1.90 mm
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
5052784033
- Engineering Series Name
0.5 FPC F/F FS19
- Engineering Series No
505278
Documents & Downloads
Datasheet
Datasheet 2764599 Molex FFC/FPC connector Total number of pins 40 Contact spacing: 0.50 mm 5052784033 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2764599 Molex FFC/FPC connector Total number of pins 40 Contact spacing: 0.50 mm 5052784033 1 pc(s) Piece
Description
0.50mm Pitch Easy-On FFC/FPC Connector, 1.90mm Height, Single Bottom Contact (FS19), Right-Angle, Surface Mount, ZIF, 40 Circuits
