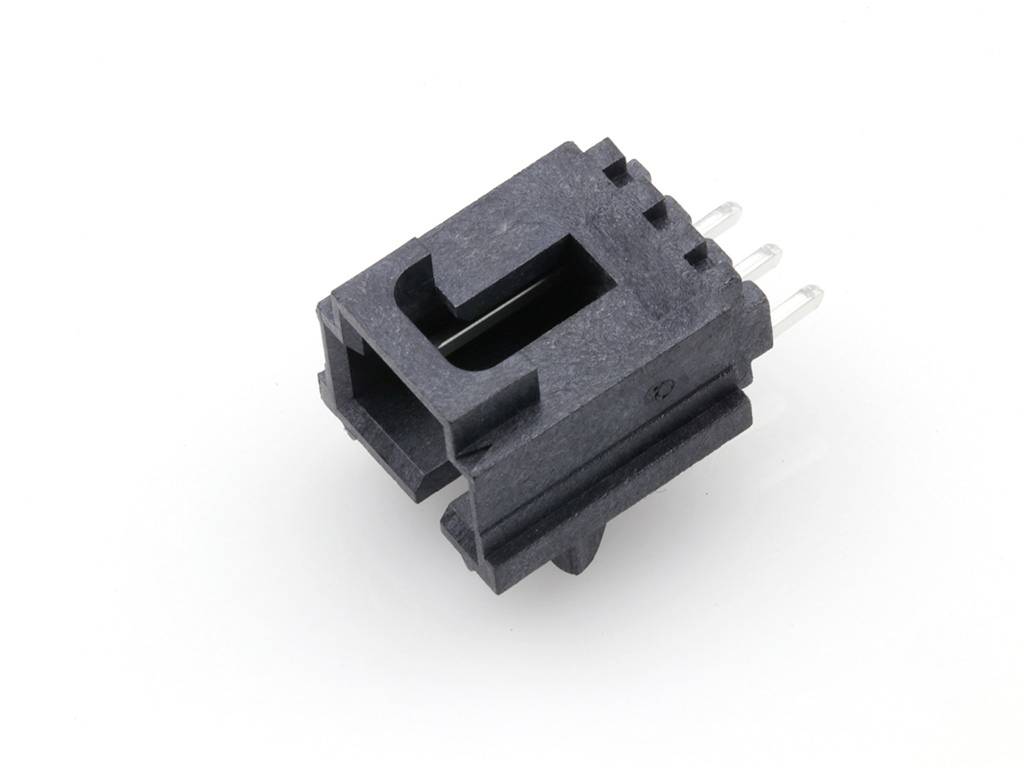

Image similar
Molex Pin housing PCB SL Total number of pins 3 Contact spacing: 2.54 mm 1719770003 1 pc(s) Tube
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
1
Series
SL
CS
2.54 mm
Total number of pins
3
Datasheet (PDF)
Highlights & Details
Molex 1719770003 SL RT HDR ASY SMT PE
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Our service for you
Technical specifications
- Packaging type
Tube
- Product type
Pin housing PCB
- No. of rows
1
- Connector system
wire-to-board
- Series
SL
- CS
2.54 mm
- Pins per row
3
- Total number of pins
3
- Content
1 pc(s)
- Connection
SMD
- Connection angle
90°
- Actuation direction
Parallel (to the PCB)
- Case material
LCP
- Manufacturer part #
1719770003
- Insulation material
LCP
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
1719770003
- Engineering Series Name
SL RT HDR ASY SMT PE
- Engineering Series No
171977
Documents & Downloads
Datasheet
Datasheet 2760599 Molex Pin housing PCB SL Total number of pins 3 Contact spacing: 2.54 mm 1719770003 1 pc(s) Tube
User & Safety Instructions
User & Safety Instructions 2760599 Molex Pin housing PCB SL Total number of pins 3 Contact spacing: 2.54 mm 1719770003 1 pc(s) Tube
Description
2.54mm Pitch SL Header, Single Row, Right-Angle, LCP, Shrouded, Surface Mount, with Pegs, Matte Tin (Sn) Plating, 3 Circuits, Tube
