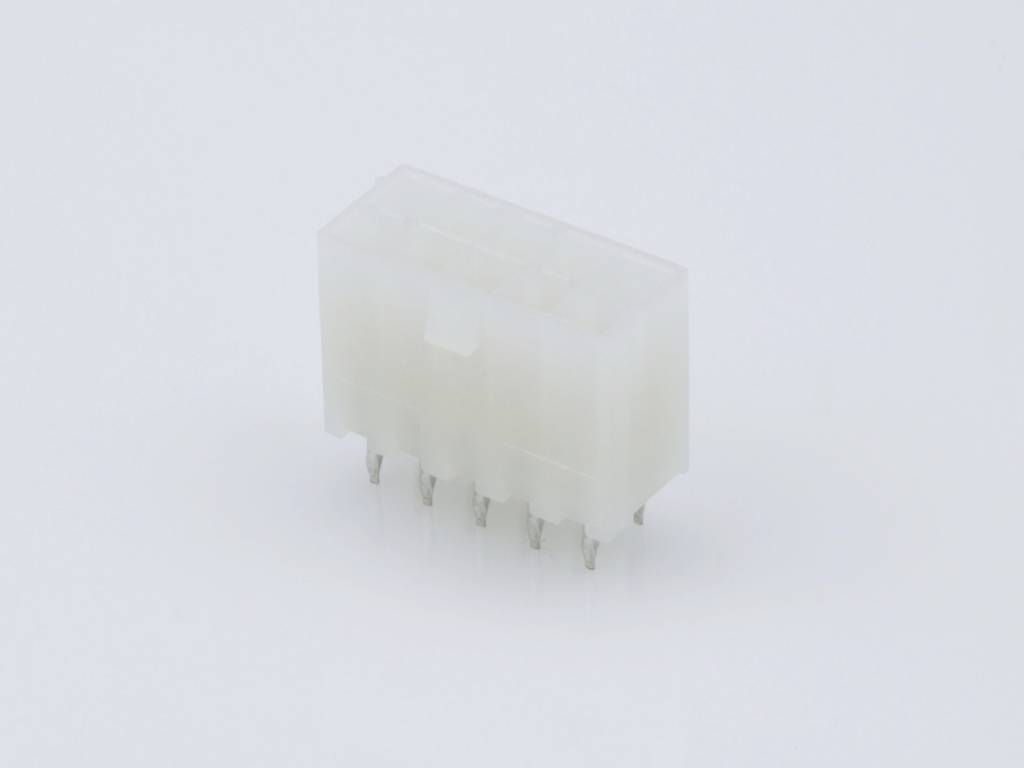

Molex Pin housing PCB Total number of pins 10 Contact spacing: 4.2 mm 39290103 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Socket, vertical vertical
No. of rows
2
CS
4.2 mm
Total number of pins
10
Datasheet (PDF)
Highlights & Details
MINIFIT JR HDR VERT 39290103
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 10
Our service for you
Technical specifications
- Product type
Pin housing PCB
- Connector type
Socket, vertical vertical
- No. of rows
2
- CS
4.2 mm
- Total number of pins
10
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Content
1 pc(s)
- Manufacturer part #
39290103
- Nominal voltage
600 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Min. temperature
-40 °C
- Type
39290103
- Engineering Part No
5566-10AGS
- Engineering Series Name
MINIFIT JR HDR VERT
- Engineering Series No
05566
- Contact surface
Brass gold plated
- Pin length (PCB)
3.5 mm
Documents & Downloads
Datasheet
Datasheet 2529313 Molex Pin housing PCB Total number of pins 10 Contact spacing: 4.2 mm 39290103 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2529313 Molex Pin housing PCB Total number of pins 10 Contact spacing: 4.2 mm 39290103 1 pc(s)
Description
Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
