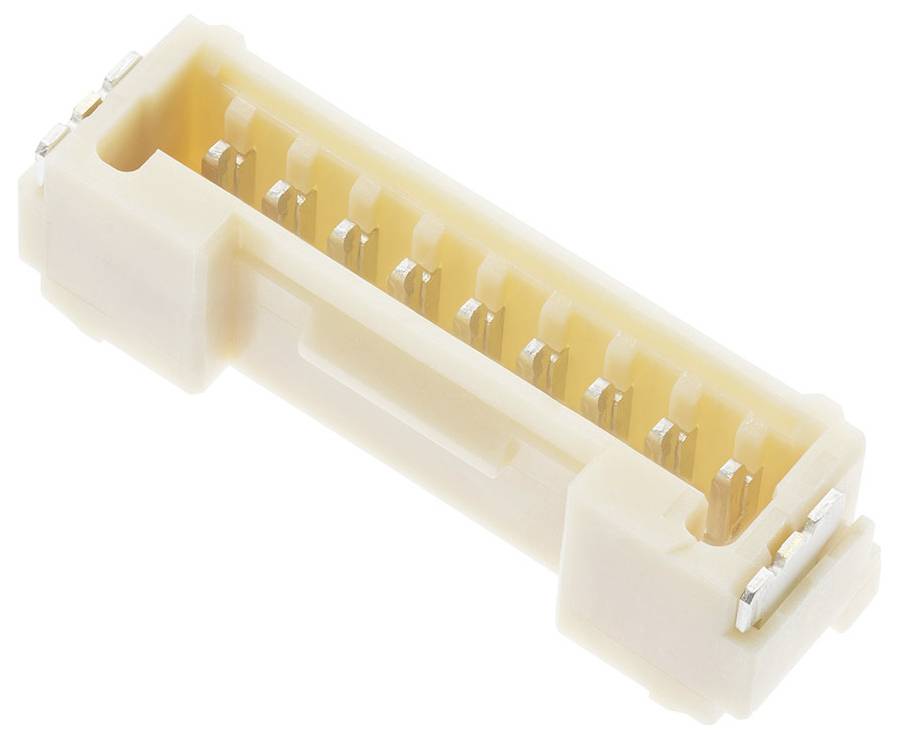

Image similar
Molex Pin housing PCB Total number of pins 12 Contact spacing: 1.25 mm 505568-1270 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
1
CS
1.25 mm
Total number of pins
12
Packaging type
Tape on Full reel
Highlights & Details
MOLEX 505568-1270
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 12
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Pin housing PCB
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.25 mm
- Pins per row
12
- Total number of pins
12
- Content
1 pc(s)
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
505568-1270
- Factory colour
Beige
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
505568-1270
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3366083 Molex Pin housing PCB Total number of pins 12 Contact spacing: 1.25 mm 505568-1270 1 pc(s) Tape on Full reel
Description
1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 12 Circuits, with Pick-and-Place Tape, Natural (Beige)
