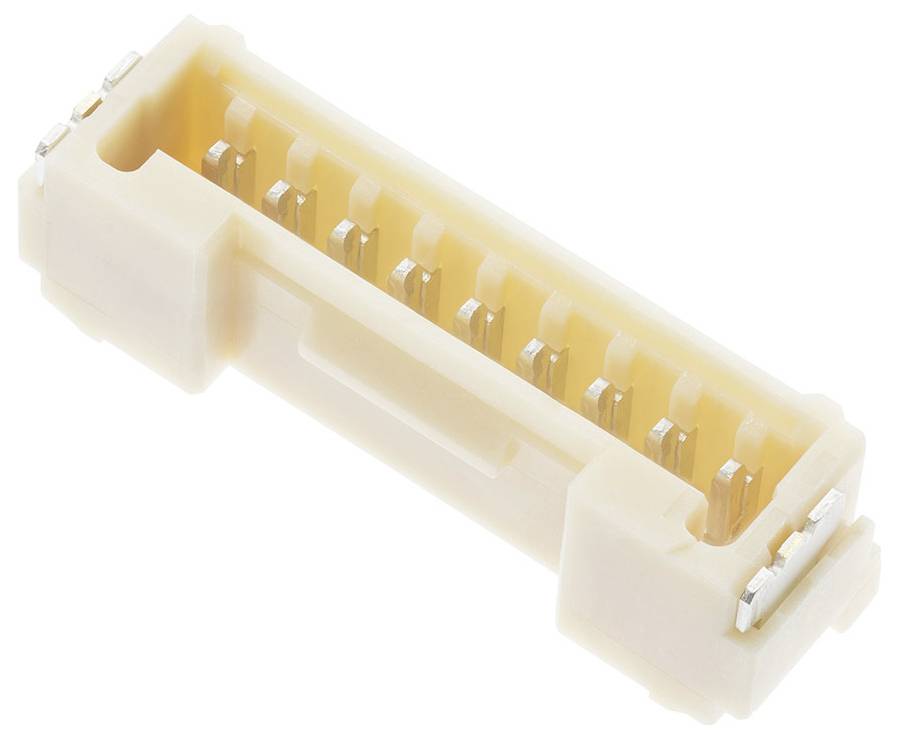

Image similar
Molex Pin housing PCB Total number of pins 14 Contact spacing: 1.25 mm 505568-1470 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
1
CS
1.25 mm
Total number of pins
14
Packaging type
Tape on Full reel
Highlights & Details
MOLEX 505568-1470
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 14
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Pin housing PCB
- No. of rows
1
- Features
+ locking mechanism
- CS
1.25 mm
- Total number of pins
14
- Content
1 pc(s)
- Connection
SMT
- Manufacturer part #
505568-1470
- Factory colour
Beige
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
505568-1470
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3366016 Molex Pin housing PCB Total number of pins 14 Contact spacing: 1.25 mm 505568-1470 1 pc(s) Tape on Full reel
Description
1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 14 Circuits, with Pick-and-Place Tape, Natural (Beige)
