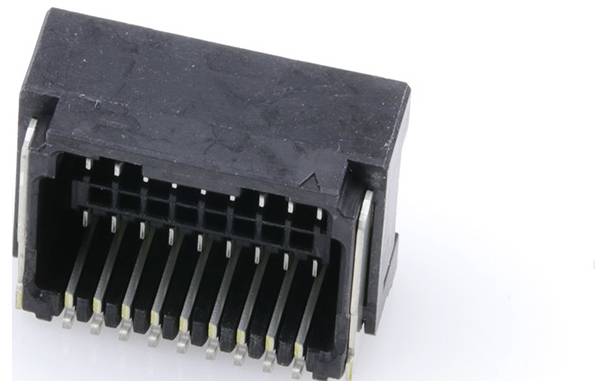

Image similar
Molex Pin housing PCB Total number of pins 18 Contact spacing: 1.25 mm 505448-1891 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
2
CS
1.25 mm
Total number of pins
18
Packaging type
Tape on Full reel
Datasheet (PDF)
Highlights & Details
MOLEX 505448-1891
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 18
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Pin housing PCB
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.25 mm
- Total number of pins
18
- Content
1 pc(s)
- Connection angle
90°
- Connector coating thickness
0.1 µm
- Manufacturer part #
505448-1891
- Factory colour
Black
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Connector orientation
Parallel (to the PCB)
- Type
505448-1891
Documents & Downloads
Datasheet
Datasheet 3376889 Molex Pin housing PCB Total number of pins 18 Contact spacing: 1.25 mm 505448-1891 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3376889 Molex Pin housing PCB Total number of pins 18 Contact spacing: 1.25 mm 505448-1891 1 pc(s) Tape on Full reel
Description
1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Right-Angle, Surface Mount, 0.10µm Gold Plating, Positive Lock, 18 Circuits, Black
