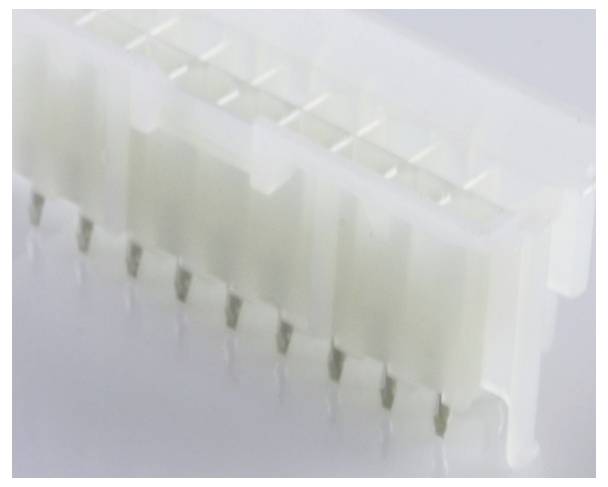

Image similar
Molex Pin housing PCB Total number of pins 18 Contact spacing: 4.2 mm 15-24-6181 1 pc(s) Tube
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
2
CS
4.2 mm
Total number of pins
18
Packaging type
Tube
Datasheet (PDF)
Highlights & Details
MOLEX 15-24-6181
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 18
Our service for you
Technical specifications
- Packaging type
Tube
- Product type
Pin housing PCB
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
4.2 mm
- Pins per row
9
- Total number of pins
18
- Content
1 pc(s)
- Connection
Pin strip
- Connection angle
90°
- Case material
Polyamide 6.6
- Manufacturer part #
15-24-6181
- Insulation material
Polyamide 6.6
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
15-24-6181
Documents & Downloads
Datasheet
Datasheet 3365261 Molex Pin housing PCB Total number of pins 18 Contact spacing: 4.2 mm 15-24-6181 1 pc(s) Tube
User & Safety Instructions
User & Safety Instructions 3365261 Molex Pin housing PCB Total number of pins 18 Contact spacing: 4.2 mm 15-24-6181 1 pc(s) Tube
Description
Mini-Fit BMI Header, 4.20mm Pitch, Dual Row, Vertical, with Snap-in Plastic Peg PCB Lock, 18 Circuits, PA Polyamide Nylon 6/6, UL 94V-2, Tin (Sn) Plating, without Drain Holes
