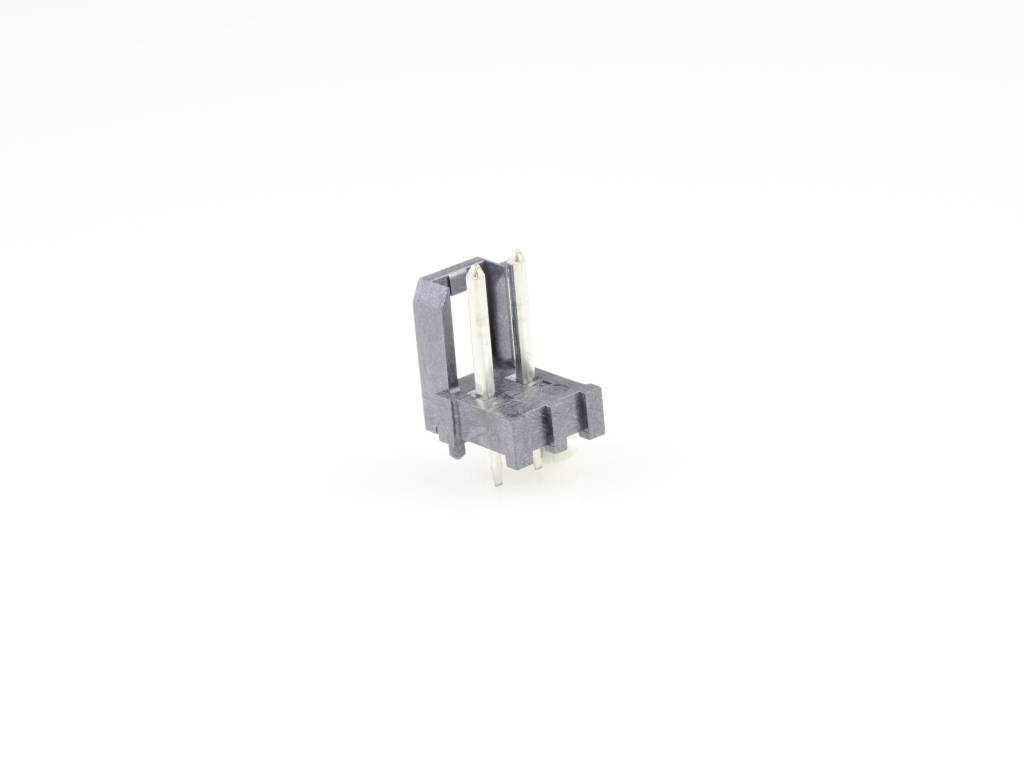

Image similar
Molex Pin housing PCB Total number of pins 2 Contact spacing: 3.96 mm 2074781002 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Pin housing PCB
CS
3.96 mm
Total number of pins
2
Packaging type
Tray
Connector system
wire-to-board
Datasheet (PDF)
Highlights & Details
Molex 2074781002 UNSHRD HDRHSG PEG
- Content: 1 pc(s)
- Total number of pins: 2
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Pin housing PCB
- Connector system
wire-to-board
- CS
3.96 mm
- Total number of pins
2
- Content
1 pc(s)
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
2074781002
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
2074781002
- Engineering Series Name
UNSHRD HDRHSG PEG
- Engineering Series No
207478
Documents & Downloads
Datasheet
Datasheet 2765718 Molex Pin housing PCB Total number of pins 2 Contact spacing: 3.96 mm 2074781002 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2765718 Molex Pin housing PCB Total number of pins 2 Contact spacing: 3.96 mm 2074781002 1 pc(s) Tray
Description
KK Plus 396 Header, 3.96mm Pitch, Vertical, Unshrouded, Tin (Sn) Plating, 2 Circuits, with Peg
