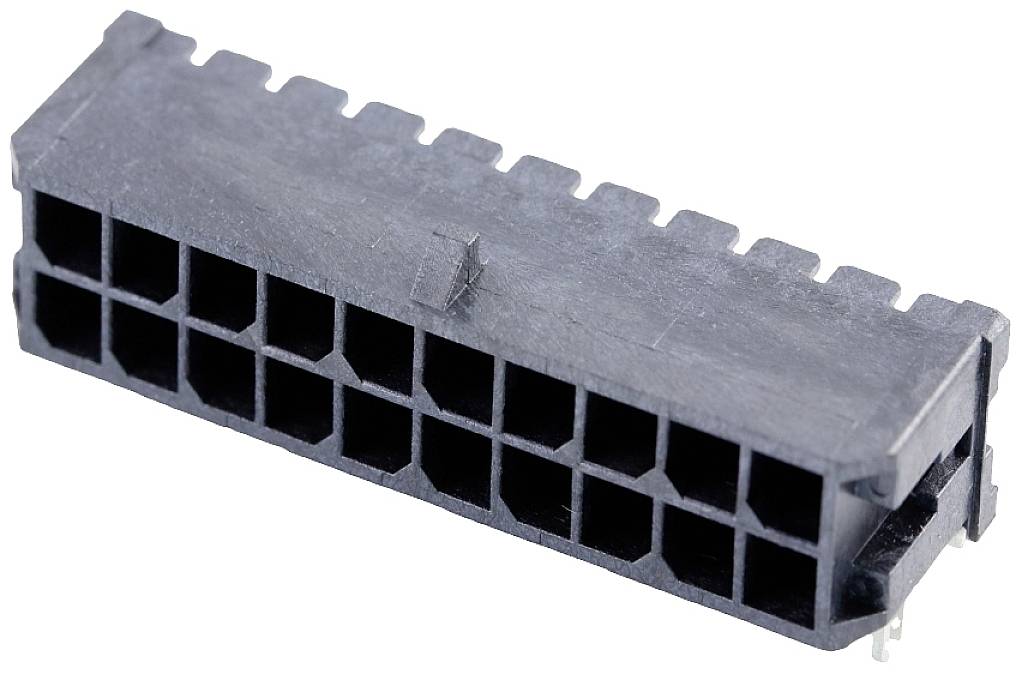

Image similar
Molex Pin housing PCB Total number of pins 20 Contact spacing: 3 mm 430452007 1 pc(s) #####Tape and Reel
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
2
CS
3 mm
Total number of pins
20
Packaging type
#####Tape and Reel
Datasheet (PDF)
Highlights & Details
MICRO-FIT HDR ASSY 430452007
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 20
Technical specifications
- Packaging type
#####Tape and Reel
- Product type
Pin housing PCB
- No. of rows
2
- Connector system
wire-to-board
- CS
3 mm
- Pins per row
10
- Total number of pins
20
- Content
1 pc(s)
- Connection
Print
- Connection angle
90°
- Manufacturer part #
430452007
- Connector contact surface
Gold
- Connector orientation
Perpendicular (to the PCB)
- Type
430452007
- Engineering Part No
43045-2007
- Engineering Series Name
MICRO-FIT HDR ASSY
- Engineering Series No
43045
Documents & Downloads
Datasheet
Datasheet 3036693 Molex Pin housing PCB Total number of pins 20 Contact spacing: 3 mm 430452007 1 pc(s) #####Tape and Reel
User & Safety Instructions
User & Safety Instructions 3036693 Molex Pin housing PCB Total number of pins 20 Contact spacing: 3 mm 430452007 1 pc(s) #####Tape and Reel
Description
Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 20 Circuits, with PCB Press-fit Metal Retention Clip, Gold, Glow-Wire Capable, Black, Tape and Reel
