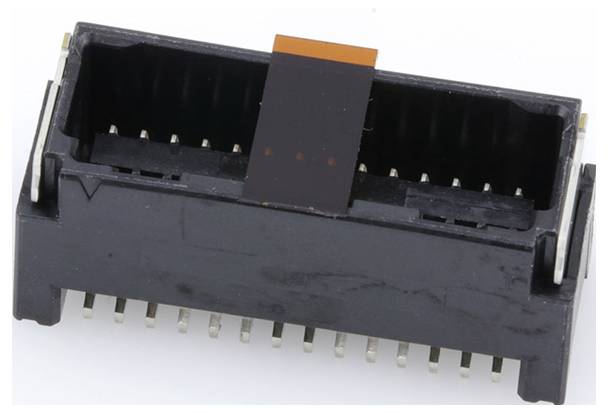

Image similar
Molex Pin housing PCB Total number of pins 28 Contact spacing: 1.25 mm 505433-2881 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
2
CS
1.25 mm
Total number of pins
28
Packaging type
Tape on Full reel
Datasheet (PDF)
Highlights & Details
MOLEX 505433-2881
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 28
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Pin housing PCB
- No. of rows
2
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.25 mm
- Pins per row
14
- Total number of pins
28
- Content
1 pc(s)
- Connection
Print
- Connection angle
90°
- Manufacturer part #
505433-2881
- Board contact surface
Tin plated
- Connector contact surface
Tin plated
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
505433-2881
Documents & Downloads
Datasheet
Datasheet 3365788 Molex Pin housing PCB Total number of pins 28 Contact spacing: 1.25 mm 505433-2881 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3365788 Molex Pin housing PCB Total number of pins 28 Contact spacing: 1.25 mm 505433-2881 1 pc(s) Tape on Full reel
Description
1.25mm Pitch, Micro-Lock Plus PCB Header, Dual Row, Vertical, Surface Mount, Tin-Bismuth Plating, Positive Lock, 28 Circuits, with Pick-and-Place Tape, Black
