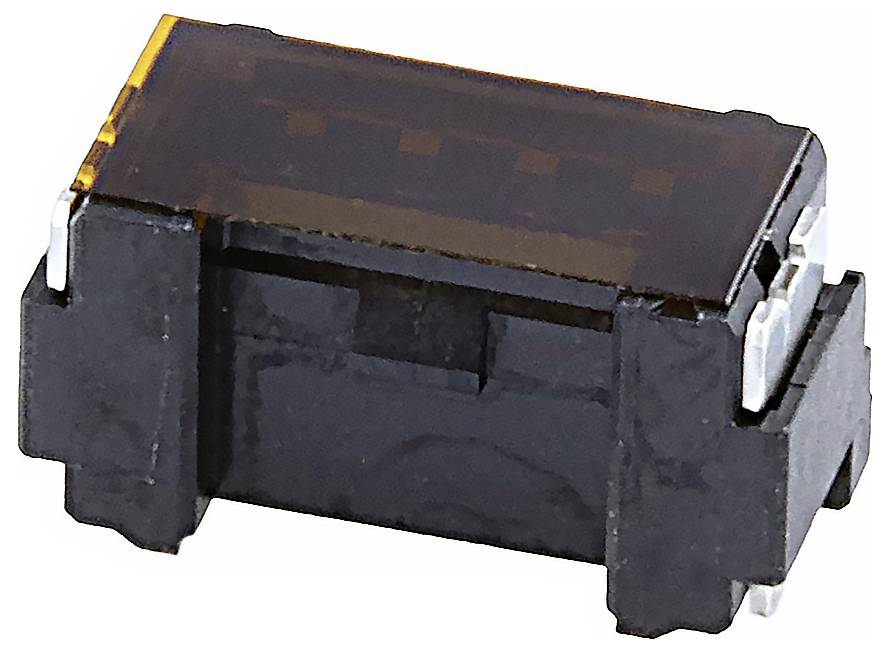

Image similar
Molex Pin housing PCB Total number of pins 4 Contact spacing: 1.25 mm 505568-0481 1 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
1
CS
1.25 mm
Total number of pins
4
Packaging type
Tape on Full reel
Datasheet (PDF)
Highlights & Details
MOLEX 505568-0481
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Product type
Pin housing PCB
- No. of rows
1
- Connector system
wire-to-board
- Features
+ locking mechanism
- CS
1.25 mm
- Pins per row
4
- Total number of pins
4
- Content
1 pc(s)
- Connection
SMD
- Coating thickness (PCB side)
0.1 µm
- Connector coating thickness
0.1 µm
- Manufacturer part #
505568-0481
- Board contact surface
Gold
- Connector contact surface
Gold
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
505568-0481
Documents & Downloads
Datasheet
Datasheet 3366216 Molex Pin housing PCB Total number of pins 4 Contact spacing: 1.25 mm 505568-0481 1 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3366216 Molex Pin housing PCB Total number of pins 4 Contact spacing: 1.25 mm 505568-0481 1 pc(s) Tape on Full reel
Description
1.25mm Pitch, Micro-Lock Plus PCB Header, Single Row, Vertical, Surface Mount, 0.10µm Gold Plating, Positive Lock, 4 Circuits, with Pick-and-Place Tape, Black
