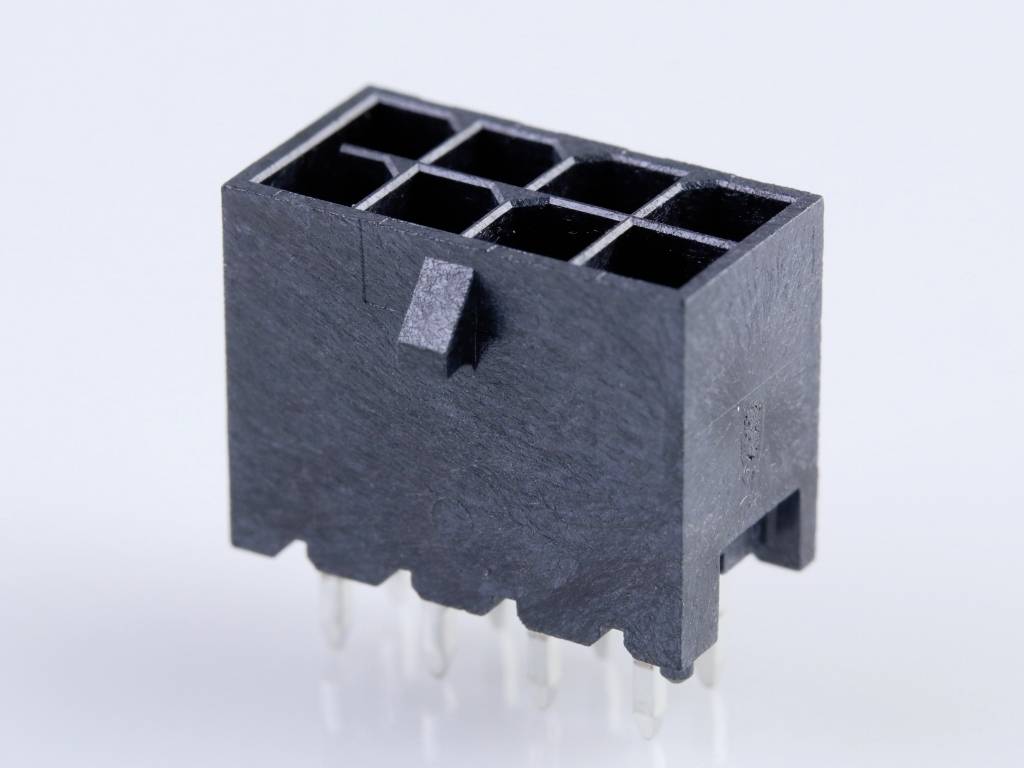

Image similar
Molex Pin housing PCB Total number of pins 8 Contact spacing: 3.00 mm 2068320802 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
2
CS
3.00 mm
Total number of pins
8
Packaging type
Tray
Datasheet (PDF)
Highlights & Details
Molex 2068320802 Micro-Fit+Vert HDR A
- Content: 1 pc(s)
- No. of rows: 2
- Total number of pins: 8
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Pin housing PCB
- No. of rows
2
- Connector system
wire-to-board
- Features
straight
- CS
3.00 mm
- Pins per row
4
- Total number of pins
8
- Content
1 pc(s)
- Connection
THT
- Connector coating thickness
0.38 µm
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
2068320802
- Factory colour
Black
- Connector contact surface
Gold (Au)
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
2068320802
- Engineering Series Name
Micro-Fit+Vert HDR A
- Engineering Series No
206832
Documents & Downloads
Datasheet
Datasheet 2760450 Molex Pin housing PCB Total number of pins 8 Contact spacing: 3.00 mm 2068320802 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2760450 Molex Pin housing PCB Total number of pins 8 Contact spacing: 3.00 mm 2068320802 1 pc(s) Tray
Description
Micro-Fit+ Vertical Header, Through Hole, 3.00mm Pitch, Dual Row, 8 Circuits, 0.38µm Gold (Au) Plating, Glow-Wire Capable, Black, Tray
