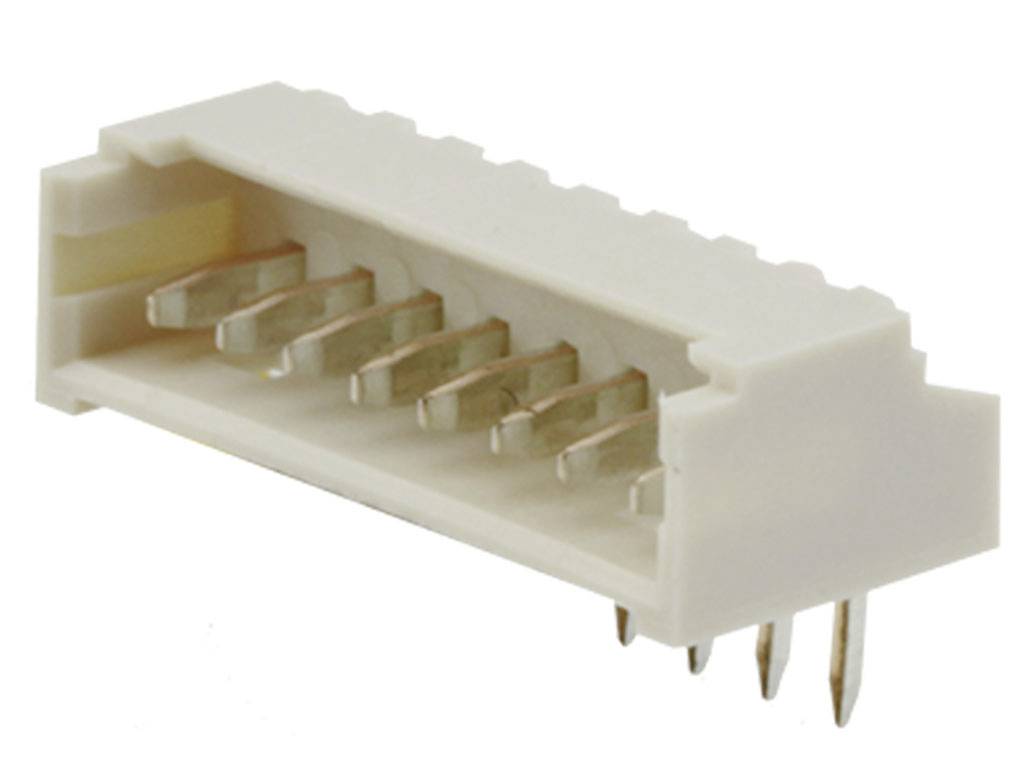

Molex Pin housing PCB Total number of pins 9 Contact spacing: 1.25 mm 530480910 1 pc(s) Tray
EAN:
Part number:
Item no:
Product type
Pin housing PCB
No. of rows
1
CS
1.25 mm
Total number of pins
9
Packaging type
Tray
Datasheet (PDF)
Highlights & Details
WtB Hdr RA Thole 530480910
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 9
Our service for you
Technical specifications
- Packaging type
Tray
- Product type
Pin housing PCB
- No. of rows
1
- Features
+ locking mechanism
- CS
1.25 mm
- Pins per row
9
- Total number of pins
9
- Content
1 pc(s)
- Connection
Soldering
- Connection angle
90°
- Manufacturer part #
530480910
- Contact material
Tin
- Connector contact surface
Tin plated
- Length
2.3 mm
- RoHS-compliant
Yes
- Type
530480910
- Engineering Part No
53048-0910
- Engineering Series Name
WtB Hdr RA Thole
- Engineering Series No
53048
Documents & Downloads
Datasheet
Datasheet 2529426 Molex Pin housing PCB Total number of pins 9 Contact spacing: 1.25 mm 530480910 1 pc(s) Tray
User & Safety Instructions
User & Safety Instructions 2529426 Molex Pin housing PCB Total number of pins 9 Contact spacing: 1.25 mm 530480910 1 pc(s) Tray
Description
1.25mm Pitch, PicoBlade PCB Header, Single Row, Right-Angle, Through Hole, Tin (Sn) Plating, Friction Lock, 9 Circuits, Tray, 2.30mm PC Tail Length
