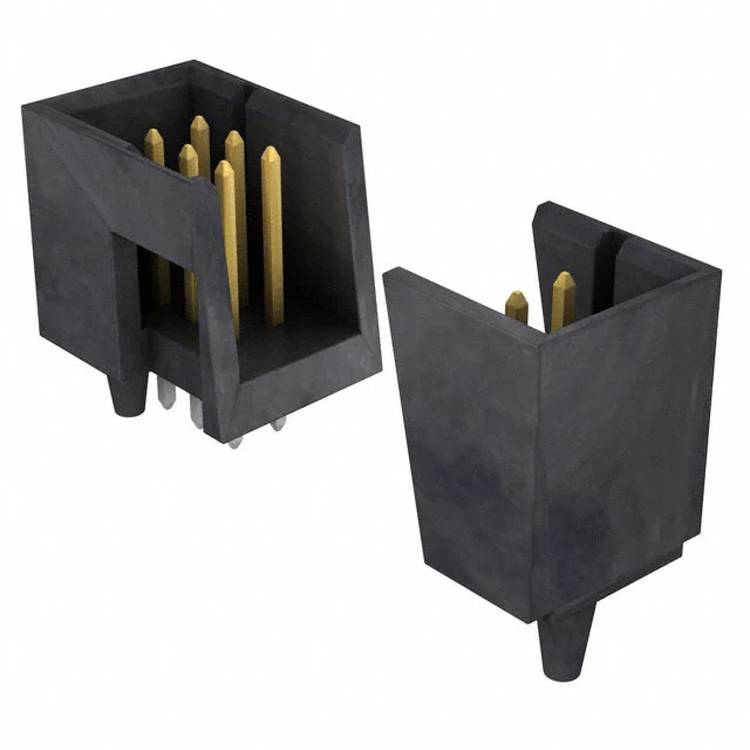

Image similar
Molex Pin strip (standard) No. of rows: 2 Pins per row: 5 15477710 1 pc(s) Tube
EAN:
Part number:
Item no:
Packaging type
Tube
Product type
Pin strip (standard)
No. of rows
2
Total number of pins
10
CS
2.54 mm
Datasheet (PDF)
Highlights & Details
Molex 15477710 CGRID VT SHRD HDR PE
- Content 1 pc(s)
- No. of rows 2
- Pins per row 5
Our service for you
Technical specifications
- Packaging type
Tube
- Product type
Pin strip (standard)
- No. of rows
2
- Pins per row
5
- Total number of pins
10
- CS
2.54 mm
- Connection
Print
- Contact surface
Partially gold plated
- Connector orientation
Perpendicular (to the PCB)
- Manufacturer part #
15477710
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
15477710
- Engineering Part No
A-70568-0071
- Engineering Series Name
CGRID VT SHRD HDR PE
- Engineering Series No
70568
Documents & Downloads
Datasheet
Datasheet 2760243 Molex Pin strip (standard) No. of rows: 2 Pins per row: 5 15477710 1 pc(s) Tube
User & Safety Instructions
User & Safety Instructions 2760243 Molex Pin strip (standard) No. of rows: 2 Pins per row: 5 15477710 1 pc(s) Tube
Description
2.54mm Pitch C-Grid Header, Through Hole, Dual Row, Vertical, High Temperature, Shrouded, with Peg, 10 Circuits, 0.76µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
