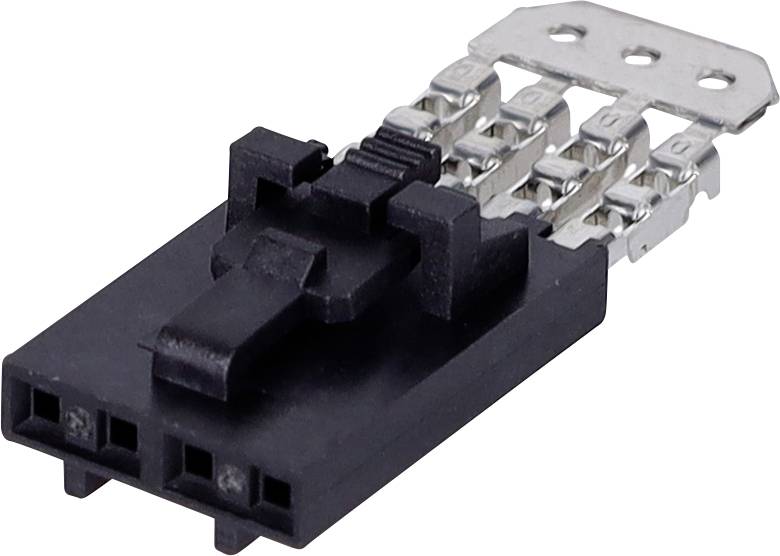

Molex Socket housing cable SL Total number of pins 4 Contact spacing: 2.54 mm 14567042 1 pc(s) Tube
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket
No. of rows
1
Series
SL
CS
2.54 mm
Datasheet (PDF)
Highlights & Details
Molex 14567042 IDT SL CONNECTOR
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Technical specifications
- Packaging type
Tube
- Product type
Socket housing cable
- Connector type
Socket
- No. of rows
1
- Series
SL
- Features
+ locking mechanism
- CS
2.54 mm
- Pins per row
4
- Total number of pins
4
- Content
1 pc(s)
- AWG max.
22
- Connection
IDC
- Connector coating thickness
3.81 µm
- Manufacturer part #
14567042
- Connector contact surface
Tin plated
- Type
14567042
- Engineering Part No
70400-3142
- Engineering Series Name
IDT SL CONNECTOR
- Engineering Series No
70400
Documents & Downloads
Datasheet
Datasheet 3037428 Molex Socket housing cable SL Total number of pins 4 Contact spacing: 2.54 mm 14567042 1 pc(s) Tube
User & Safety Instructions
User & Safety Instructions 3037428 Molex Socket housing cable SL Total number of pins 4 Contact spacing: 2.54 mm 14567042 1 pc(s) Tube
Description
2.54mm Pitch SL Insulation Displacement Connector Assembly, Female, Single Row, Version G, Positive Lock, Wire Size 22 AWG, 3.81µm Tin/Lead (SnPb), 4 Circuits
