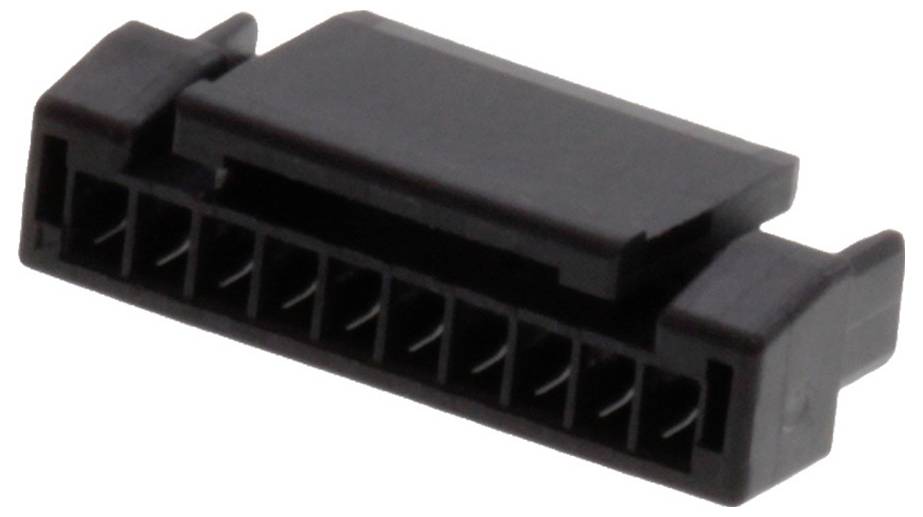

Molex Socket housing cable Total number of pins 10 Contact spacing: 1.25 mm 505565-1001 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Socket housing cable
Connector type
Socket
No. of rows
1
CS
1.25 mm
Total number of pins
10
Datasheet (PDF)
Highlights & Details
MOLEX 505565-1001
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 10
Our service for you
Technical specifications
- Packaging type
Bag
- Product type
Socket housing cable
- Connector type
Socket
- No. of rows
1
- CS
1.25 mm
- Pins per row
10
- Total number of pins
10
- Content
1 pc(s)
- Connection
Crimp
- Manufacturer part #
505565-1001
- Factory colour
Black
- Insulation material
PBT
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
505565-1001
Documents & Downloads
Datasheet
Datasheet 3366602 Molex Socket housing cable Total number of pins 10 Contact spacing: 1.25 mm 505565-1001 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 3366602 Molex Socket housing cable Total number of pins 10 Contact spacing: 1.25 mm 505565-1001 1 pc(s) Bag
Description
1.25mm Pitch, Micro-Lock Plus Receptacle Crimp Housing, Single Row, Positive Lock, 10 Circuits, Black
