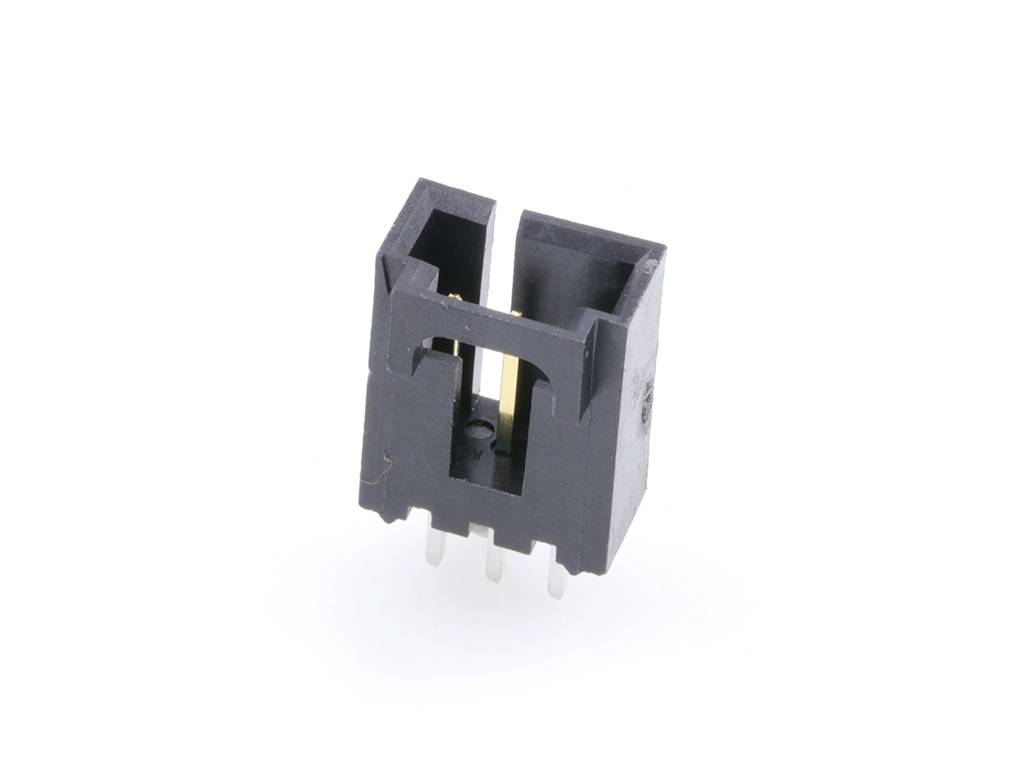

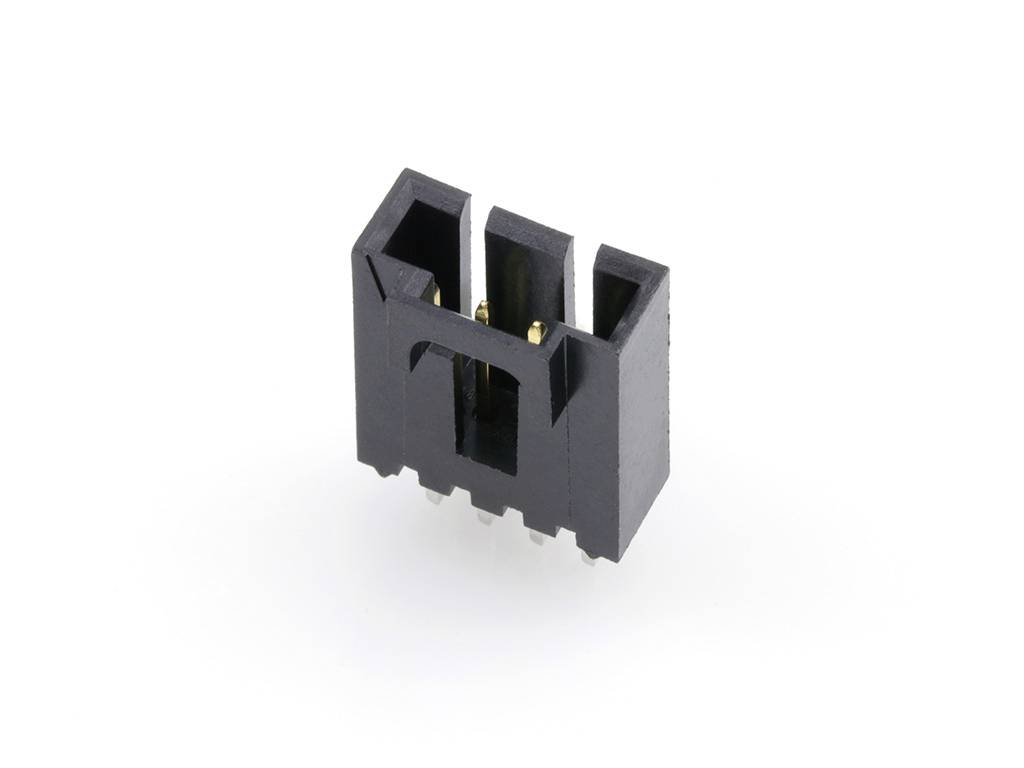

Image similar
Molex Total number of pins 3 Contact spacing: 2.54 mm 705430002 1 pc(s) Tube
EAN:
Part number:
Item no:
No. of rows
1
CS
2.54 mm
Total number of pins
3
Packaging type
Tube
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Molex 705430002 120 STR LCP - CROWN
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 3
Technical specifications
- Packaging type
Tube
- No. of rows
1
- CS
2.54 mm
- Total number of pins
3
- Content
1 pc(s)
- Connection
Print
- Manufacturer part #
705430002
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Type
705430002
- Engineering Part No
A-70543-0002
- Engineering Series Name
120 STR LCP - CROWN
- Engineering Series No
70543
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2764834 Molex Total number of pins 3 Contact spacing: 2.54 mm 705430002 1 pc(s) Tube
Description
2.54mm Pitch SL Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 3 Circuits, 0.38µm Gold (Au) Selective Plating, Tin (Sn) PC Tail Plating
