Monacor CDX1-1430 Tweeter driver RMS capacity=50 W 8 Ω
EAN:
Part number:
Item no:
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
Only 10 Piece(s) available
Highlights & Details

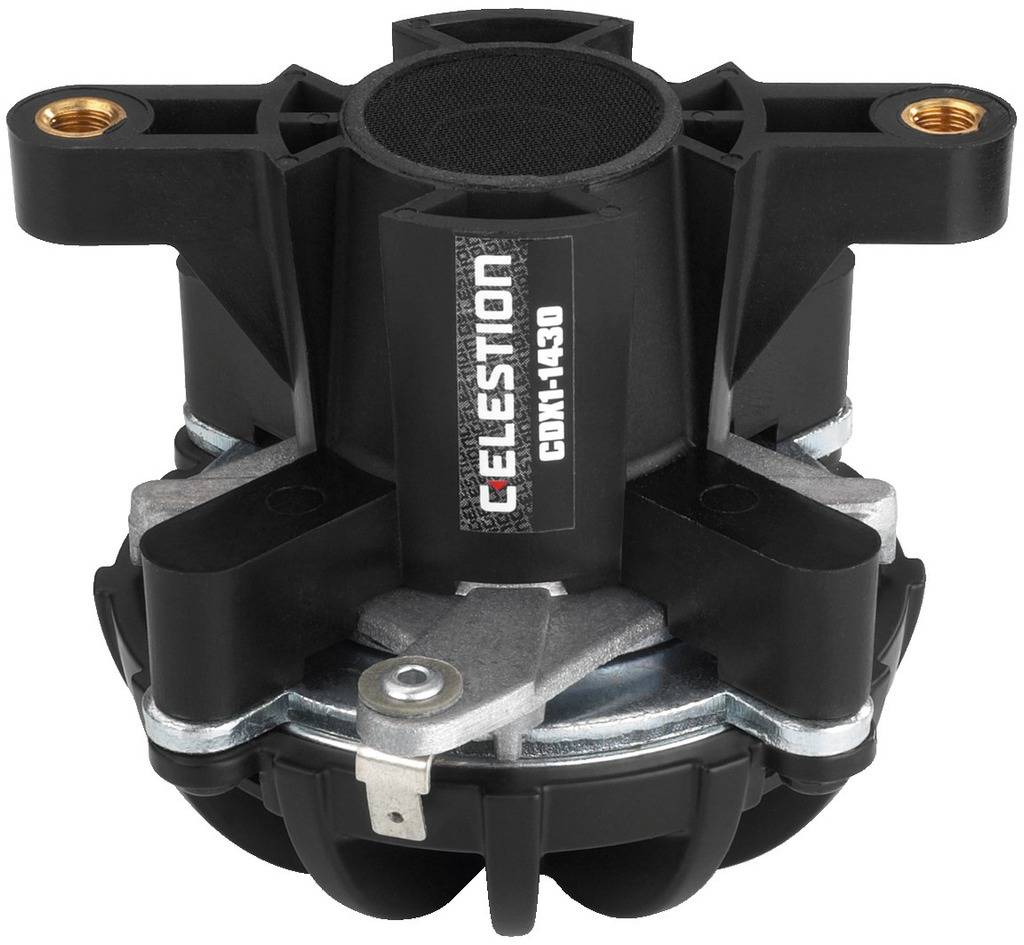

Monacor CDX 1-1430 horn driver
- Celestion horn driver innovative technology, developed by using the latest computer supporters Finite Element technology is license plate this medium and high-tone driver.
- Results are systems with have hardly reached frequency response linearity, very high efficiency and very good sound properties.
- This text is machine translated.
Technical specifications
- Impedance (Z): 8 Ohm
- Resonant frequency (fs): 1750 Hz
- Max. Frequency range: fx -19000 Hz
- Recv. Cut-off frequency (Fmax.) (12 dB/oct): 3000 Hz
- Maximum capacity 100 WMAX
- Nominal load (P): 50WRMS
- Avg. Schalldr. (1W/1m): 110 dB
- Beam angle (vert./hor.): depending on the Horn
- Voice coil diameter: 34.4 mm
- Magnetic diameter: 75 mm
- Installation opening: depending on the Horn
- Installation depth: depending on the Horn
- Dimensions: diameter. 75 mm x 75 mm
- Weight: 450 g
- Product type
Tweeter driver
- RMS capacity
50 W
- Max. load
100 W
- Min. frequency
89 Hz
- Max. frequency
20000 Hz
- Frequency range
89 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
450 g
- (Ø)
75 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1331432 Monacor CDX1-1430 Tweeter driver RMS capacity=50 W 8 Ω
Description
Features
- PA Horn Driver
- 25-mm horn driver (1")
- Standard 2-screw mounting
- Neodymium motor system with cooling
- Far-reaching and extremely linear frequency response
- Very high sound pressure at low distortion
- Already approx. 3000 Hz, with this driver of very high quality sounding 2-way arrangements even with 38 cm bass (15") is possible.
- Suitable for the horns MRH-200 and MRH-180
