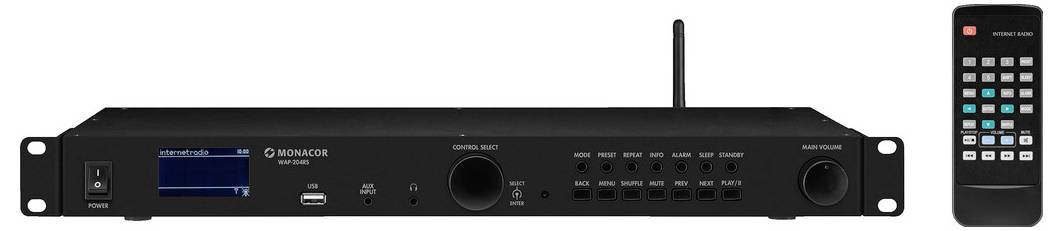

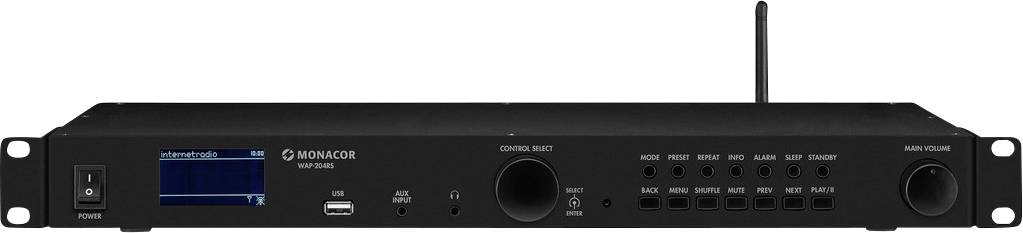

Monacor WAP-204RS Internet compact radio Internet radio, FM, DAB+, MP3, Wi-Fi, Bluetooth
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Net weight: 3.2 kg
- Dimensions 482 x 44 x 245 mm
- Ass. Operating temperature 0-40 °C
- Weighs 2.7 kg.
- Gross weight: 3.98 kg
- Power supply: " 230 V/50 Hz/20 VA DC 15 V/300 mA
- Power consumption operation 20 VA

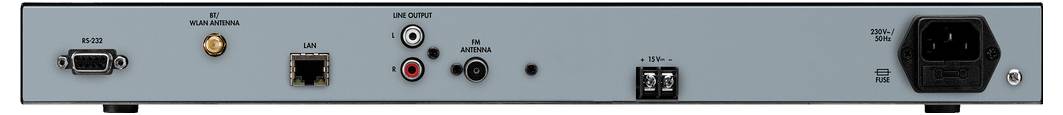

- Connection via 1 x 3.5 mm stereo jack (Aux In), 1 x RCA L/R (Line Out), 1 x 3.5 mm stereo jack (headphones) ,1 x RJ45 (LAN) 1 x WLAN/Bluetooth antenna 1 x RS-232 interface
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Operating voltage (alternative if necessary): DC 15 V.
- Current (alternatively): 300 mA
- Type: Internet radio, FM-RDS and DAB+ tuner, MP3 player
- Media: Bluetooth, FM, DAB+, MP3, LAN/WLAN
- Output, analogue 750 mV
- Product type
Internet compact radio
- hifi functions
Internet radio
FM
DAB+
MP3
Wi-Fi
Bluetooth
- Dim
(W x H x D) 482 x 44 x 245 mm
- Power supply (LOV)
via mains outlet
- Width
482 mm
- Height
44 mm
- Depth
245 mm
- Weight
2.7 kg
- Wireless charging
No
Documents & Downloads
Datasheet
Datasheet 3340605 Monacor WAP-204RS Internet compact radio Internet radio, FM, DAB+, MP3, Wi-Fi, Bluetooth
User & Safety Instructions
User & Safety Instructions 3340605 Monacor WAP-204RS Internet compact radio Internet radio, FM, DAB+, MP3, Wi-Fi, Bluetooth
Description
Internet radio, FM-RDS and DAB+ tuner, MP3 player

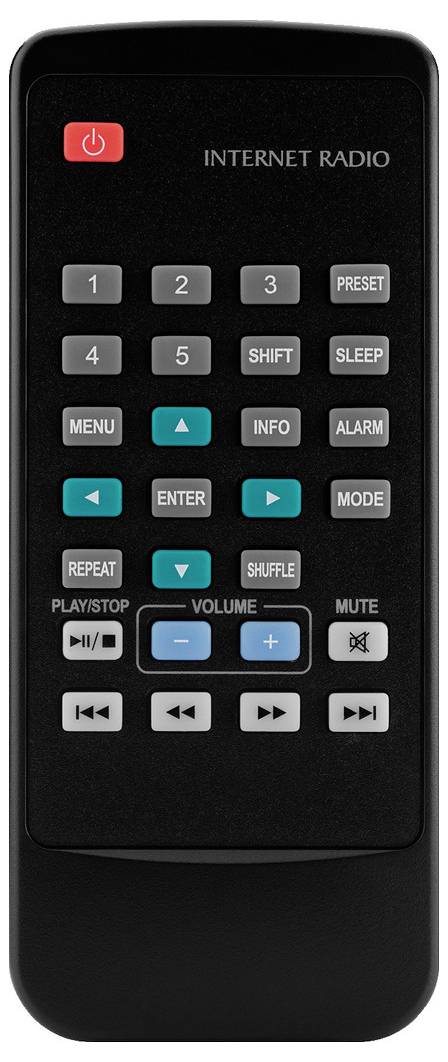

Bluetooth interface Network connection via LAN socket or WLAN Access to over 20000 radio stations worldwide Station search by genre, broadcaster name, location FM-RDS-reception function Reception of noise-free "digital radio" (DAB+) USB-host input for a direct playback of MP3-files Simple use via Jog Dial Big, Illuminated matrix display Equalizer with factory and user presets Shuffle-Play and repeat folder via USB Summer-/winter time switching Sleep-timer and alarm function with snooze Remote-controlled via infrared remote control, RS-232 19 interface or UNDOK™-APP Aux-front input (232 1 mm stereo jack) Headphone output (3.5 482 mm stereo jack) 75 Ω-FM antenna input, coaxial antenna connection RS-3.5 mm rack mount
This text is machine translated.
Bluetooth interface Network connection via LAN socket or WLAN Access to over 20000 radio stations worldwide Station search by genre, broadcaster name, location FM-RDS-reception function Reception of noise-free "digital radio" (DAB+) USB-host input for a direct playback of MP3-files Simple use via Jog Dial Big, Illuminated matrix display Equalizer with factory and user presets Shuffle-Play and repeat folder via USB Summer-/winter time switching Sleep-timer and alarm function with snooze Remote-controlled via infrared remote control, RS-232 19 interface or UNDOK™-APP Aux-front input (232 1 mm stereo jack) Headphone output (3.5 482 mm stereo jack) 75 Ω-FM antenna input, coaxial antenna connection RS-3.5 mm rack mount
This text is machine translated.
Features
- Type: Internet radio
- FM-RDS and DAB+ tuner
- MP3 player
- Media Bluetooth
- FM
- DAB+
- MP3
- LAN/WLAN:
- Output
- Analogue 750 mV
- Power supply: " 230 V/50 Hz/20 VA; DC 15 V/300 mA
- Mains voltage ~ 230 V
- Mains frequency 50 Hz
- Power consumption operation 20 VA
- Operating voltage (alternative if necessary): DC 15 V.
- Current (alternatively): 300 mA
- Ass. Operating temperature 0-40 °C
- Dimensions 482 x 44 x 245 mm
- Weighs 2.7 kg.
- Connection via 1 x 3.5 mm stereo jack (Aux In), 1 x RCA L/R (Line Out), 1 x 3.5 mm stereo jack (headphones),;1 x RJ45 (LAN);1 x WLAN/Bluetooth antenna;1 x RS-232 interface;
- Packaging dimensions (W x H x L) 0.325 x 0.135 x 0.6 m
- Gross weight: 3.98 kg
