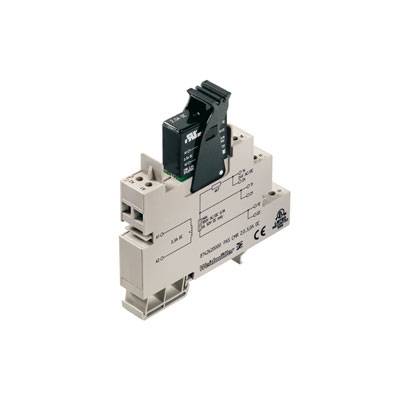

Monitoring relay Weidmüller PAS CMR 2,0...5,0 A DC Piece 10 pc(s)
Packaging type
Piece
Product type
Monitoring relay
Functions
Current
Switching voltage (max.)
100 V DC/AC
Type
PAS CMR 2,0...5,0 A DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Current monitoring relay
- Industrial packaging, pack of 10
Technical specifications
- Over voltage category III
- Input current 2...5.0 A DC
- Input resistance Current < : 50 mΩ
- Continuous current: 100 mA
- Contact material: RH/Rd (reed contact)*
- Mounting rail TS 35
- Rated voltage: 300 V
- Clamping range, rated connection 1.5 mm²
- Clamping range, min. 2.5 mm²
- Clamping range, max. 2.5 mm²
- Packaging type
Piece
- Product type
Monitoring relay
- Type
PAS CMR 2,0...5,0 A DC
- Reading range (min.)
2 A
- Reading range (max.)
5 A
- Functions
Current
- Operating voltage
300 V
- Amperage adjustment range (min.)
2 A
- Amperage adjustment range (max.)
5.0 A
- Adjustment range (amperage)
2 - 5.0 A
- Switching voltage (max.)
100 V DC/AC
- Connection
Screws
- Min. temperature
0 °C
- Max. temperature
+55 °C
- Width
15.3 mm
- Depth
95 mm
- Dim
(L x W) 92 mm x 15.3 mm
- Content
10 pc(s)
- Industrial packaging
Yes
- Weight
70.8 g
- Length
92 mm
Documents & Downloads
Datasheet
Datasheet 391683 Monitoring relay Weidmüller PAS CMR 2,0...5,0 A DC Piece 10 pc(s)
User & Safety Instructions
User & Safety Instructions 391683 Monitoring relay Weidmüller PAS CMR 2,0...5,0 A DC Piece 10 pc(s)
Description
The PLUGCONTROL PAS CMR current monitoring relay with screw connection is a simple and economical solution for monitoring DC currents. The monitoring relay (REED contact) is mounted on a standard TS35 rail mounting base. Typical applications are the current monitoring of valves, servo valves and DC motors.
