Morningstar TS-M-2 Remote display screen
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

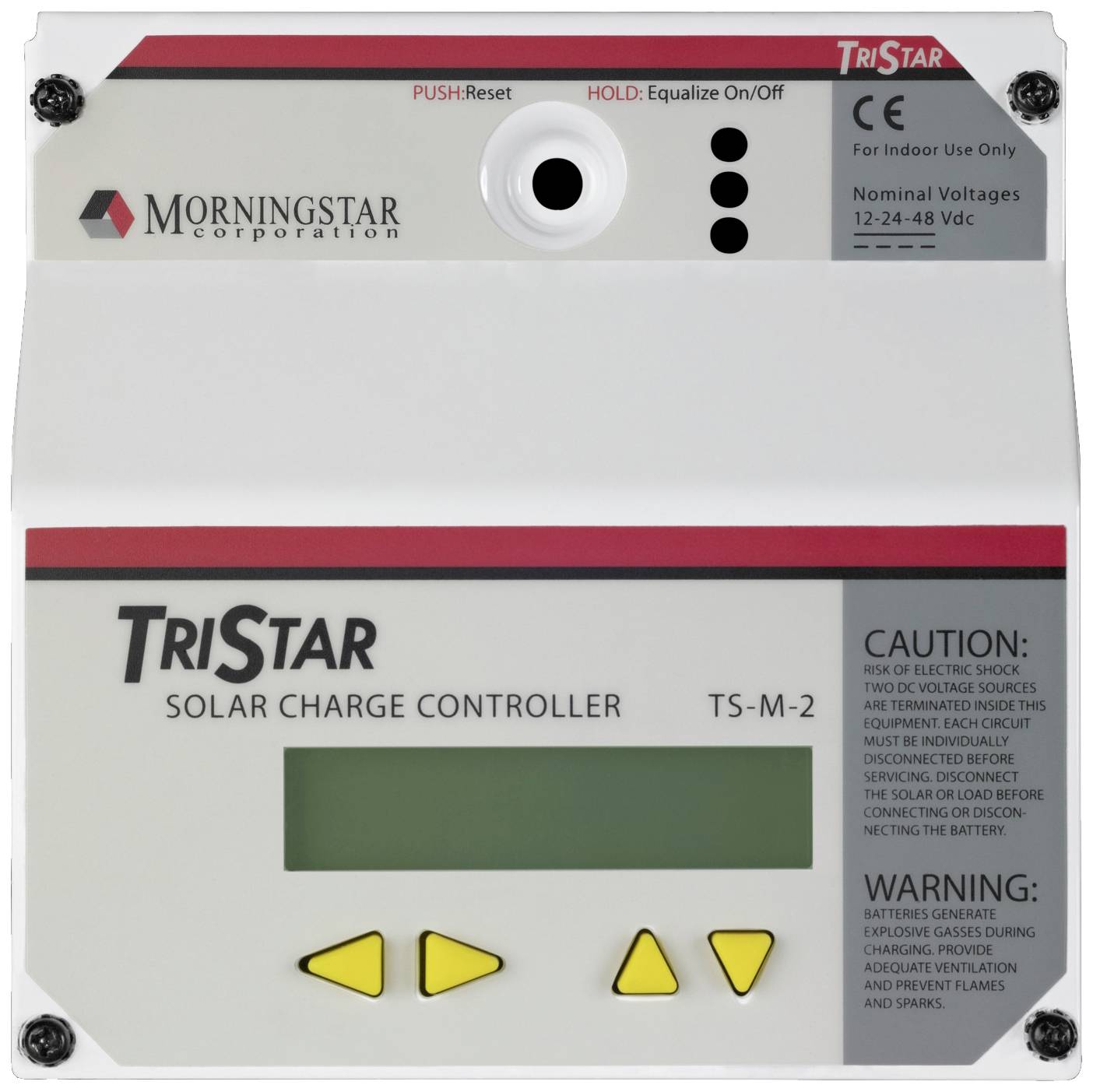

Display and measuring device Morningstar Tristar TS-M-2
- Uses standard 6-wire RJ-11 ports
- TS-RM-2 fits in a "double gear" electrical box and inclusive of 30 meters cable
- Display individual controller data of up to 15 TriStars with optional Morningstar MeterHub
Technical specifications
- Product type
Remote display screen
- Weight
230 g
- Factory colour
White
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3025475 Morningstar TS-M-2 Remote display screen
User & Safety Instructions
User & Safety Instructions 3025475 Morningstar TS-M-2 Remote display screen
Description
Morningstar's Tristar Meter-2 (TS-M-2) and Tristar Remote Meter-2 (TS-RM-2) are advanced digital measuring devices that can be used with any TriStar™ solar controller. These two counters are identical except that the TS-M-2 is mounted on the controller and the TS-RM-2 is installed flush up to 30 meters from the controller.
The TriStar meters are 2 x 16-character LCDs that display extensive system and regulator information, logged data, bar graphs, and alarms and errors for easy troubleshooting. The information can be displayed in English, French, German, Portuguese or Spanish.
In systems with multiple controllers, the TS-M-2 and the TS-RM-2 can be networked with Morningstars MeterHub, allowing the data of the individual controllers and the entire system to be displayed together on a single counter.
This text is machine translated.
The TriStar meters are 2 x 16-character LCDs that display extensive system and regulator information, logged data, bar graphs, and alarms and errors for easy troubleshooting. The information can be displayed in English, French, German, Portuguese or Spanish.
In systems with multiple controllers, the TS-M-2 and the TS-RM-2 can be networked with Morningstars MeterHub, allowing the data of the individual controllers and the entire system to be displayed together on a single counter.
This text is machine translated.
Features
- Accessories for TS and TS - MPPT
- Uses standard 6-wire RJ-11 ports
- TS-RM-2 fits in a "double gear" electrical box and includes 30 meters (98.4 feet) cable
- Both the data and the Meterbus current flow are carried out via a single cable
- Network supports up to 15 devices and optionally more than one meter per system
- Aggregates system data to display total charge, utilization, etc. Charging/discharging status of the battery
- Automatic detection of all devices found in the network
- Four direction keys for easy navigation
- Backlight for improving readability
Scope of delivery
- Display and measuring device
