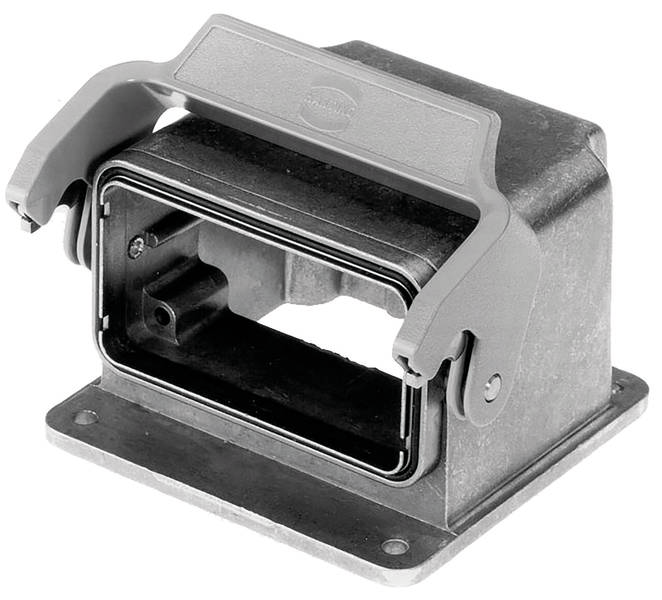

Motor terminal housing 09 30 410 0901 09304100901 HARTING 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Motor terminal housing
Case material
Aluminium, die cast
Type
09 30 410 0901
Manufacturer part #
09304100901
Datasheet (PDF)
Technical specifications
- Lock type: Longitudinal handle
- Temperature limit: -40 ... +125 °C
- Net weight: 251.6 g
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Material locking: Polycarbonate (PC);stainless steel
- Protection class according to IEC 60529: IP65
- Design size 10 B
- Approvals DNV GL
- Casing type: Motor connection casing
- Housing series: Han-Drive®
- Material housing: Aluminium die-cast
- Surface housing: Uncoated
- Material sealing: NBR
- Limit temperature note: When used as a connector in accordance with IEC 61984.
- Protection class according to UL 50 / UL 50E:4;4X;12
- Colour locking: RAL 7037 (dust gray)
- Material flammability class to UL 94 (locking bar): V-0
- Han-Easy Lock®: Yes
- Distance between mounting holes: 68 mm
- Packaging type
Piece
- Type
09 30 410 0901
- Product type
Motor terminal housing
- Manufacturer part #
09304100901
- Features
Longitudinal brace
- Case material
Aluminium, die cast
- Series
Han-Drive®
- Content
1 pc(s)
IP65
- Max. temperature
+125 °C
- Min. temperature
-40 °C
FALSE
FALSE
Other
Single locking lever
FALSE
FALSE
Aluminium
Uncoated
-40-125 °C
Other
FALSE
TRUE
Other
IP65
Other
Base unit
None
Documents & Downloads
Datasheet
Datasheet 3003587 Motor terminal housing 09 30 410 0901 09304100901 HARTING 1 pc(s) Piece
Datasheet 3003587 Motor terminal housing 09 30 410 0901 09304100901 HARTING 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003587 Motor terminal housing 09 30 410 0901 09304100901 HARTING 1 pc(s) Piece
Description
Motor connector housing, size: 10 B, longitudinal clamp, polycarbonate (PC), stainless steel, Material housing: aluminum die-cast, uncoated
