MPE Garry 082-1-032-0-XT0 SMD IC socket 1 pc(s)
Product type
SMD IC socket
Length
18.2 mm
Width
20.7 mm
Height
4.8 mm
Dim

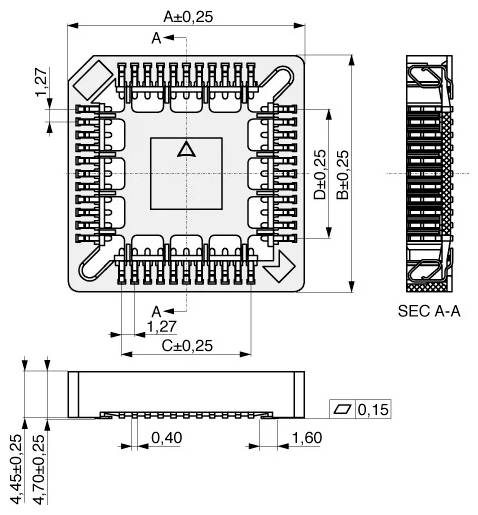

(L x W x H) 18.2 x 20.7 x 4.8 mm
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
SMD PLCC sockets
Our service for you
Technical specifications
- Soldibility 260 °C / 10 s
- Breakdown voltage 600 V RMS / min.
- Product type
SMD IC socket
- Length
18.2 mm
- Width
20.7 mm
- Height
4.8 mm
- Dim
(L x W x H) 18.2 x 20.7 x 4.8 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Nominal current
1 A
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3735528 MPE Garry 082-1-032-0-XT0 SMD IC socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3735528 MPE Garry 082-1-032-0-XT0 SMD IC socket 1 pc(s)
Description

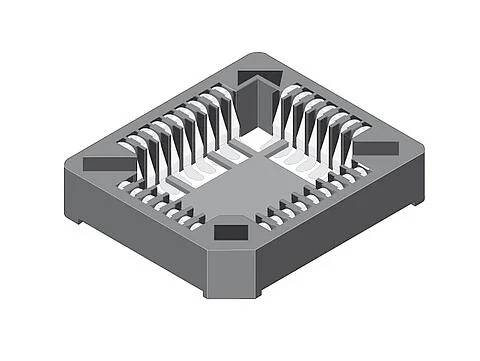

PLCC socket for SMD mounting (acc JEDEC MO-047/MO-025) with the same connector layout as the chip
PCB connection SMD Gull-wing
high-temperature resistant
