Name: MSI MAG B760M MORTAR WIFI II Motherboard PC base Intel® 1700 Form factor (details) Micro-ATX Motherboard chipset Intel®
Brand: MSI
SKU: 3045562

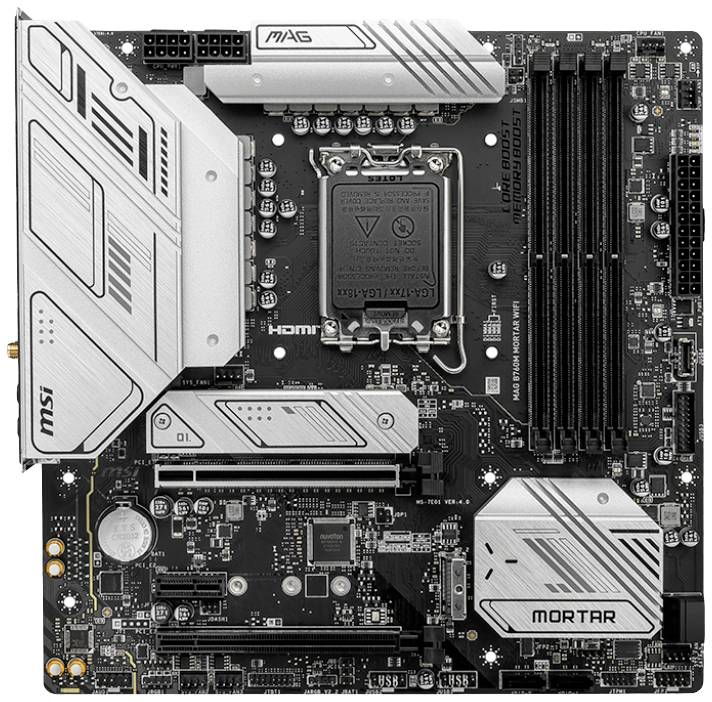

A silver and black computer motherboard with various ports and expansion slots, suitable for PC building.

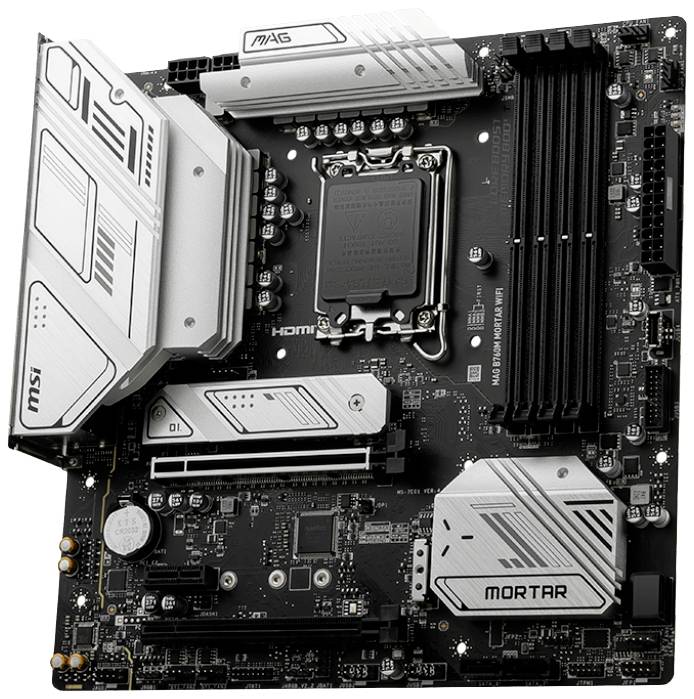

'Motherboard with multiple PCIe slots, four RAM slots, and CPU socket. Type MSI MAG B560M MORTAR, silver-black.'

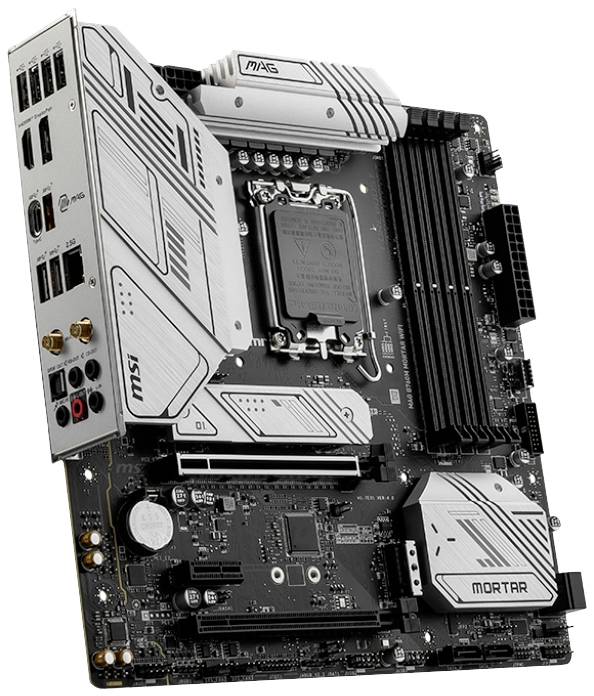

Computer motherboard with multiple ports, RAM slots, and CPU socket, suitable for PC builds and hardware upgrades.

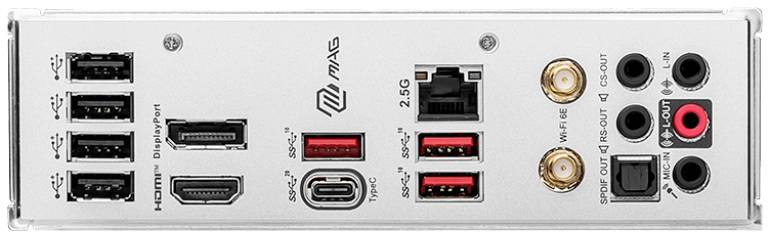

Back of a motherboard with an HDMI port, multiple USB ports, network and audio ports, and Wi-Fi antenna connections.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Supported RAM Health Check: Non-ECC
RAM - Registered or buffered: Unbuffered
RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP)
Audio type: HD audio (8-channel)
Audio Codec: Realtek ALC897
Audio-compatibility: High-definition audio
Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 1 x PCIe 5.0 x16; 1 x PCIe 3.0 x4; 1 x M.2 slot (2242/2260/2280 M.2 slot with key M); 1 x M.2 slot (2260/2280 M.2 key M slot); 1 x M.2 socket (2280 M.2 key B slot)
Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10 / RAID 5; PCIe 4.0 ports 2 x M.2; SATA-600 / PCIe 4.0 ports: 1 x M.2
External interfaces: 1 x HDMI; 1 x DisplayPort; 4 x USB 2.0; 1 x USB-C 3.2 Gen2; 3 x USB 3.2 Gen 2; 1 x LAN (2.5Gigabit Ethernet); 2 x antenna; 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 1 x audio line-out (center/subwoofer) – mini jack plug; 1 x audio line-out (rear) – mini jack plug; 1 x audio line-in – mini jack plug; 1 x SPDIF output
Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2 - multi-pin connector; 1 x audio - multi-pin connector; 1 x SPI multi-pin connector
Power connections: Main power connection, 24-pin, 2 8-pin ATX12V connections
BIOS Features: M-FLASH, MSI ClickBIOS 5
Hardware features: Digital PWM, MSI audio boost, debug LED, 6 layer PCB, MSI mystic light, MSI steel armor, surge protection, 2oz copper PCB, M.2 Shield FROZR, water pump header, 12+1+1 Phase Power design, MSI core boost, extended heat sink design, DIY friendly design, surface mount technology (SMT), VRM heat sink design, MSI memory boost, load-line calibration (LLC)

Product type: Motherboard

Chipset: Intel® B760

: Intel® 1700

Form factor: Micro-ATX

Processor/type: unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation

RAM type: DDR5 RAM

Clock speed: 5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz
5000 MHz
5600 MHz
5400 MHz
7400 MHz
7600 MHz
7800 MHz
Show more

RAM / Max. upgrade: 256 GB

Interfaces: HDMI™
DisplayPort
USB A (USB 2.0)
USB C® (USB 3.2 2x 2nd gen)
USB A (USB 3.2 2nd gen)
Gigabit LAN (1/2.5 Gbps)
Audio line in
Audio line out
Microphone (3.5 mm jack)
S/PDIF
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
Bluetooth
Wi-Fi 6E (IEEE 802.11ax)
Show more

No. of DDR5 slots: 4 x

No. of Gigabit LANs: 1 x

No. of PCIe 3.0 x16: 1 x

No. of PCIe x4: 1 x

No. of USB 2.0 ports: 6 x

No. of USB 3.2 2nd Gen (USB 3.1): 3 x

No. of USB 3.2: 2 x

No. of USB 3.0 ports: 2 x

UKCA: yes
