MSI MSI MAG B850 Gaming Plus Max Wifi Motherboard Form factor (details) ATX
EAN:
Part number:
Item no:
Highlights & Details

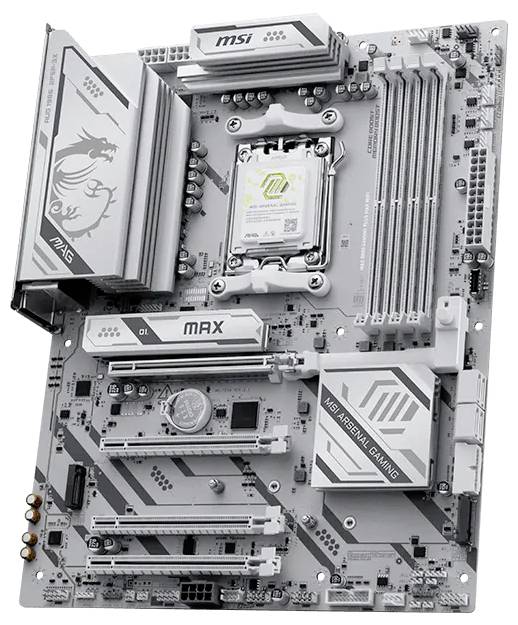

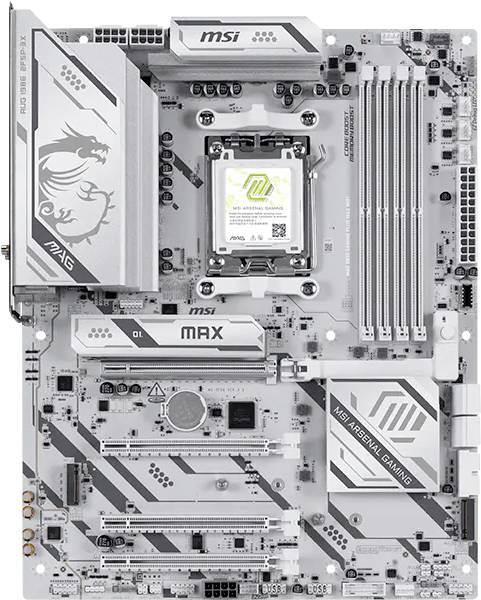

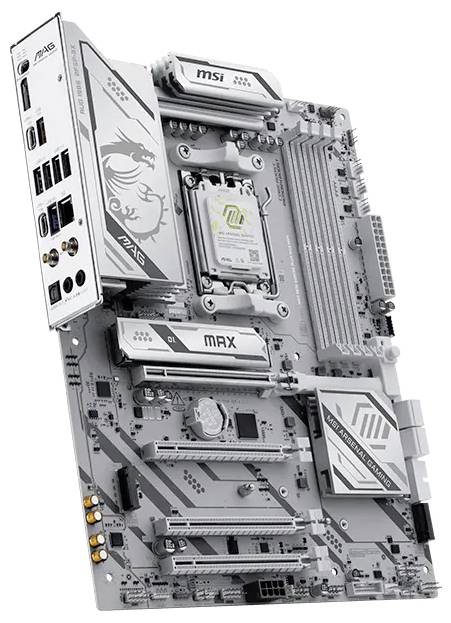

MSI MSI MAG B850 Gaming Plus Max Wifi Motherboard
- AMD socket AM5 AMD Ryzen 7000 series, AMD Ryzen 8000 series, AMD Ryzen 9000 series
- PC ATX AMD B850 Realtek ALC897 7.1 channels
- DDR5 SDRAM 4 DIMM RAM maximum: 256 GB
- HDD & SSD M.2, Micro SATA III RAID-support Number of supported storage drives: 7
- BIOS Type: UEFI AMI 512 Mbit ACPI Version: 6.5
- 5 Gigabit Ethernet WLAN Wi-Fi 7 (802.11b) Bluetooth 5.4
Technical specifications
- Socket AM5
- Supported processor slots: Socket AM5
- Supported memory: DDR5 SDRAM
- WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
- AMD B850 motherboard chipset
- Product type
Motherboard
- Form factor
ATX
- RAM type
DIMM
- RAM / Max. upgrade
256 GB
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of USB 2.0 ports
4 x
- No. of USB 3.2 2nd Gen (USB 3.1)
2 x
- No. of SATA III ports
4 x
- Bluetooth
5.4
- Bluetooth
Yes
- Factory colour
White
- Depth
304.8 mm
- Width
243.8 mm
- No. of DisplayPort
1 x
- No. of USB A 2.0 ports
4 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- No of. USB type A 3.1 /3.2 2nd gen
1 x
- Onboard graphics card
No
- 10/100/1000 Mbps ports
1 x
- Range of use
PC
- Wi-Fi
Yes
- BIOS memory size
512 Mbit
- Ethernet LAN
yes
- Number of memory slots
4
- Number of M.2 (M) slots
3
- USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
- Total number of SATA connectors
4
- CPU fan connector
yes
- Number of HDDs supported
4
- RGB LED pin header
yes
- Supported memory clock speed (max)
8200 MHz
3
6
1
- RAID support
yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
4
- Number of storage drives supported
7
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730387 MSI MSI MAG B850 Gaming Plus Max Wifi Motherboard Form factor (details) ATX
Description
MAG B850 GAMING PLUS MAX WIFI
The MAG B850 GAMING PLUS MAX WIFI is a mainboard, which was designed especially for gamers. It provides a stable, long-lasting and user-friendly basis for PC construction. With the latest Wi-Fi 7 solution, 5G-LAN, USB 10 Gbps, PCIe 5.0, additional PCIe power and exclusive EZ-DIY features, it's ready to battle the AMD Ryzen™ 9000 series processors
This text is machine translated.
The MAG B850 GAMING PLUS MAX WIFI is a mainboard, which was designed especially for gamers. It provides a stable, long-lasting and user-friendly basis for PC construction. With the latest Wi-Fi 7 solution, 5G-LAN, USB 10 Gbps, PCIe 5.0, additional PCIe power and exclusive EZ-DIY features, it's ready to battle the AMD Ryzen™ 9000 series processors
This text is machine translated.
Features
- Supports AMD Ryzen™ 9000/8000/7000 series desktop processors
- Supports DDR5 RAM, Dual channel DDR5 8200 + MT/s (OC)
- Ultra performance: 12+2+1 Duet Rail power supply system, dual 8-pin CPU power connection system, core boost, memory boost, 6-ply PCB of 2 oz thick copper and server-level material
- Frozr Guard: Extended heat sink, 7 W/mK MOSFET thermal pads, additional throttle coil heat conductive pads and EZ M.2 Shield Frozr II are designed for high-performance systems and an uninterrupted experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning fast memory: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB-Type-C.
- 5G-LAN with Wi-Fi 7: The current solution for professional and multimedia use
- Audio Boost: Treat your ears to studio-quality sound for an immersive gaming experience
