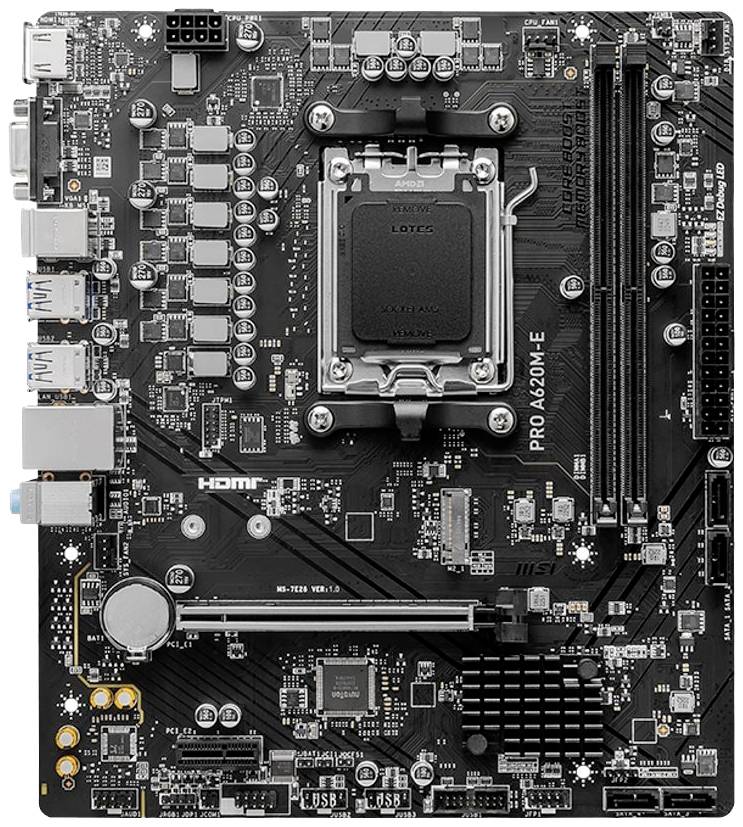

MSI PRO A620M-E Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® A620
EAN:
Part number:
Item no:
Technical specifications
- Supported RAM Health Check: Non-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, AMD EXPO technology
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC897
- Audio-compatibility: High-definition audio
- Realtek RTL8111H network controller
- Network interfaces: Gigabit Ethernet
- Expansion slots: 1 x CPU; 2 x DIMM 288-pin; 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x1; 1 x M.2 socket (2260/2280 M.2 Key M slot)
- Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1 / RAID 10; PCIe 4.0 ports 1 x M.2
- External Interfaces: 1 x HDMI; 1 x VGA; 4 x USB 3.2 Gen 1; 2 x USB 2.0; 1 x LAN (Gigabit Ethernet); PS/2 keyboard; 1 x Audio Line-In - Mini jack plug; 1 x Audio Line-Out - Mini jack plug; 1 x Microphone - Mini jack plug; PS/2 Mouse
- Internal interfaces: 2 x USB 3.2 Gen 1 - multi-pin connector; 4 x USB 2.0 - multi-pin connector; 1 x audio - multi-pin connector; 1 x SPI - multi-pin connector; 1 x serial - pin connector
- Power connections: Main power connection, 24-pin, ATX12V plug, 8-pin
- BIOS type: AMI
- BIOS Features: MSI ClickBIOS 5
- Hardware features: Debug LED, MSI steel armor, MSI core boost, DIY friendly design, surface mount technology (SMT), MSI memory boost
- Product type
Motherboard
- Chipset
AMD® A620
#####AMD AM5
- Form factor
Micro-ATX
- Processor/type
Ryzen (unterstützt Ryzen 7000 Series)
- RAM type
DDR5 RAM
- Clock speed
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
4800 MHz
- RAM / Max. upgrade
96 GB
- Interfaces
HDMI™
VGA
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Gigabit LAN (1 Gbps)
PS/2
Audio line in
Audio line out
Mic/line-in combo (3.5 mm jack)
Serial (9-pin)
- No. of DDR5 slots
2 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
6 x
- No. of USB 3.2
6 x
- No. of serial ports
1 x
- No. of PS/2 ports
2 x
- Factory colour
Multicolour
- Weight
0.8
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045508 MSI PRO A620M-E Motherboard PC base #####AMD AM5 Form factor (details) Micro-ATX Motherboard chipset AMD® A620
Description
Scope of delivery
- IO shielding
- M.2 Screws/Spacer sets
- 1 x Serial ATA cable
- This text is machine translated.
