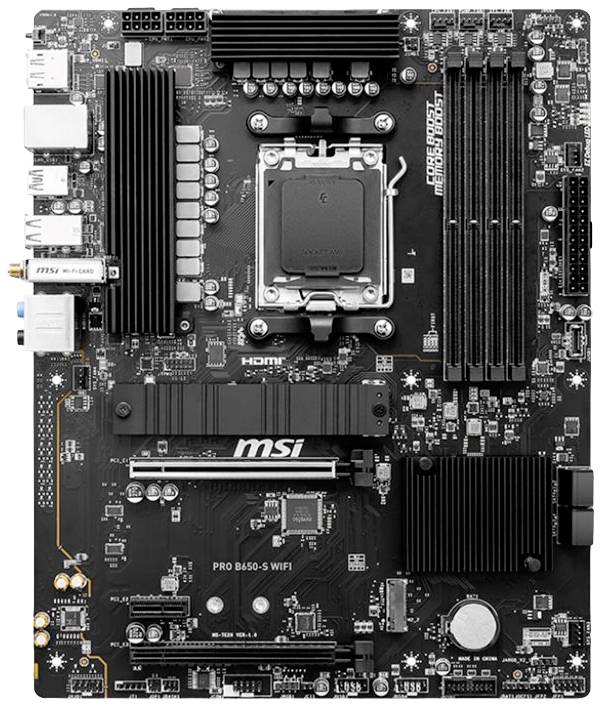

MSI PRO B650-S Wifi Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
EAN:
Part number:
Item no:
Technical specifications
- Supported RAM Health Check: Non-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, AMD EXPO technology
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC897
- Audio-compatibility: High-definition audio
- Network controller Realtek RTL8125BG
- Network interfaces: 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Expansion slots: 1 x M.2 socket (2260/2280 M.2 Key M Slot); 1 x M.2 socket (2280/22,110 M.2 Key M Slot); 4 x DIMM 4.0-pin; 1 x CPU; 1 x PCIe 288 x16; 1 x PCIe 3.0 x1; 1 x PCIe 4.0 x4; 1 x M.2 socket (Key E)
- Memory interfaces: SATA-600 ports: 4 x 7-pin serial ATA- RAID 0 / RAID 1; PCIe 4.0 ports 2 x M.2 - RAID 0 / RAID 1
- External interfaces: 1 x HDMI; 1 x DisplayPort; 3 x USB 3.2 Gen 2; 1 x USB-C 3.2 Gen2; 4 x USB 3.2 Gen 1; 1 x audio line out – mini jack plug; 1 x microphone – mini jack plug; 1 x audio line in – mini jack plug; 1 x audio line-out (center/subwoofer) – mini jack plug; 1 x audio line-out (side surround) – mini jack plug; 1 x audio line-out (rear) – mini jack plug; 2 x antenna; 1 x LAN (2.5Gigabit Ethernet)
- Internal interfaces: 4 x USB 2.0 - multi-pin connector; 2 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2 - multi-pin connector; 1 x audio - multi-pin connector
- Power connections: Main power connection, 24-pin, 2 8-pin ATX12V connections
- BIOS Features: M-FLASH, MSI ClickBIOS 5
- Hardware features:digital PWM, debug LED, 6 layer PCB, MSI steel Armor, water cooling ready heat sink design, 2oz copper PCB, M.2 shield FROZR, MSI core boost, compatible with TPM-M 2.0, 12+2+1 phase Power design, DIY friendly design, Nvidia resistive BAR support, surface mount technology (SMT), MSI memory boost, flash BIOS button
- Product type
Motherboard
- Chipset
AMD® B650
#####AMD AM5
- Form factor
ATX
- Processor/type
Ryzen (unterstützt Ryzen 7000 Series)
- RAM type
DDR5 RAM
- Clock speed
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
Show more
- RAM / Max. upgrade
192 GB
- Interfaces
HDMI™
DisplayPort
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2x 2nd gen)
USB A (USB 3.2 1st gen)
Audio line in
Audio line out
Microphone (3.5 mm jack)
Gigabit LAN (1/2.5 Gbps)
USB A (USB 2.0)
Show more
- No. of DDR5 slots
4 x
- No. of LAN ports
1 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x16
1 x
- No. of PCIe x4
1 x
- No. of PCIe x1
1 x
- No. of USB 2.0 ports
4 x
- No. of USB type A 3.0 ports
6 x
- No. of USB 3.2 2nd Gen (USB 3.1)
3 x
- No. of USB 3.2
6 x
- No. of USB 3.0 ports
2 x
- No. of SATA III ports
4 x
- Onboard audio
7.1
- Factory colour
Multicolour
- Weight
1.455
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045528 MSI PRO B650-S Wifi Motherboard PC base #####AMD AM5 Form factor (details) ATX Motherboard chipset AMD® B650
Description
Scope of delivery
- I/O-shielding
- WLAN-antenna
- EZ M.2 terminals
- 1 x Serial ATA cable
- This text is machine translated.
