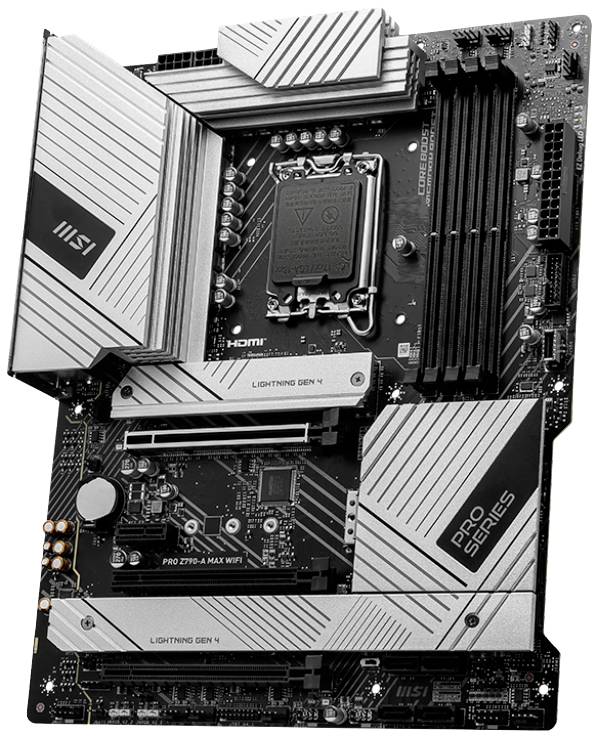

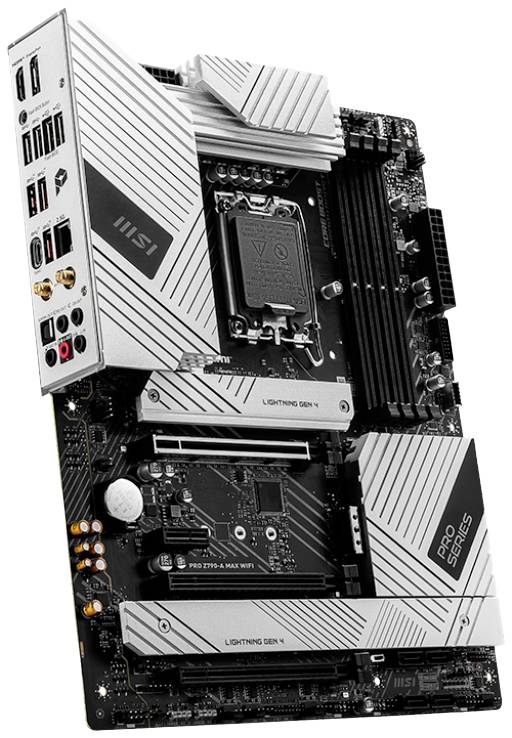

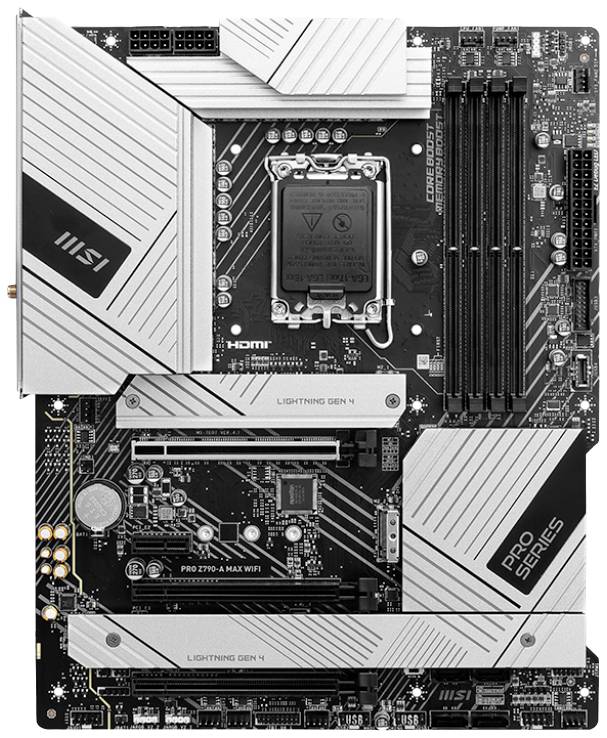

MSI PRO Z790-A MAX Wifi Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z790
EAN:
Part number:
Item no:
Technical specifications
- Supported RAM Health Check: Non-ECC
- RAM - Registered or buffered: Unbuffered
- RAM features: Two-channel memory architecture, Intel extreme memory profiles (XMP) 3.0
- Audio type: HD audio (8-channel)
- Audio Codec: Realtek ALC4080
- Audio-compatibility: High-definition audio
- Network interfaces: 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
- Expansion slots: 1 x CPU; 4 x DIMM 288-pin; 2280/22110 x PCIe 3.0 x1; 1 x PCIe 5.0 x16; 1 x PCIe 4.0 x16 (x4 mode); 1 x M.2 slot (2242/2260/2 M.2 slot with key M); 3 x M.2 slot (2242/2260/2280 M.2 slot with key M)
- Memory interfaces: SATA-600 ports: 6 x 7-pin serial ATA – RAID 0/RAID 1/RAID 10/RAID 5; PCIe 4.0 ports: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

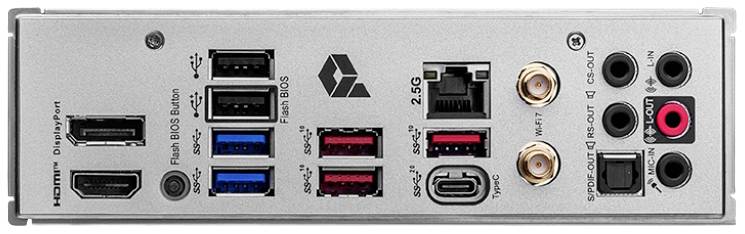

- External interfaces: 1 x HDMI; 1 x DisplayPort; 2 x USB 3.2 Gen 1; 3 x USB 3.2 Gen 2; 1 x USB-C 3.2 Gen2; 2 x Antenna; 1 x Audio Line Out; mini jack plug; 1 x Microphone - mini jack plug; 1 x Audio Line Out (middle/subwoofer) - mini jack plug; 1 x audio line out (rear) – mini jack plug; 1 x audio line in – mini jack plug; 1 x SPDIF output; 1 x LAN (2.5Gigabit Ethernet); 2 x USB 2.0
- Internal interfaces: 4 x USB 2.0 - multi-pin connector; 1 x USB 3.2 Gen 1 - multi-pin connector; 1 x USB-C 3.2 Gen 2 - multi-pin connector; 2 x Thunderbolt - multi-pin connector; 1 x SPI - multi-pin connector; 1 x audio - multi-pin connector
- Power connections: Main power connection, 24-pin, 2 8-pin ATX12V connections
- BIOS type: AMI
- BIOS Features: UEFI BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
- Hardware features: MSI Mystic Light, MSI Steel Armor, 2oz copper PCB, M.2 shield FROZR, pre-mounted I/O shield, MSI core boost, extended heat sink design, EZ LED control, VRM heat sink design, MSI memory boost, Enlarged heat sink for chipset, Flash BIOS button, Frozr AI cooling, M.2 EZ-lock, EZ Debug LED
- Product type
Motherboard
- Chipset
Intel® Z790
Intel® 1700
- Form factor
ATX
- Processor/type
unterstützt Intel Core / Pentium Gold / Celeron der 12., 13. und 14. Generation
- RAM type
DDR5 RAM
- Clock speed
5800 MHz
6000 MHz
4800 MHz
6200 MHz
6400 MHz
6600 MHz
7000 MHz
6800 MHz
7200 MHz
5200 MHz
Show more
- RAM / Max. upgrade
256 GB
- Interfaces
HDMI™
DisplayPort
USB A (USB 3.2 1st gen)
USB A (USB 3.2 2nd gen)
USB C® (USB 3.2 2x 2nd gen)
Audio line in
Audio line out
Microphone (3.5 mm jack)
S/PDIF
USB A (USB 2.0)
Show more
- No. of DDR5 slots
4 x
- No. of Gigabit LANs
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe 3.0 x16
1 x
- No. of PCIe x1
2 x
- No. of USB 2.0 ports
6 x
- No. of USB 3.2 2nd Gen (USB 3.1)
3 x
- No. of USB 3.2
4 x
- No. of USB 3.0 ports
2 x
- No. of PS/2 ports
3045561 x
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3045558 MSI PRO Z790-A MAX Wifi Motherboard PC base Intel® 1700 Form factor (details) ATX Motherboard chipset Intel® Z790
Description
Scope of delivery
- WLAN-antenna
- M.2 screws/spacer sets
- 2 x EZ M.2 clips
- 2 x Serial ATA cable
