Murrelektronik 4000-73000-0240000 Sensor/actuator built-in connector No. of pins (RJ): 9 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
No. of pins
9
Nominal voltage
5
Type
MSDD PT22-S USB3.0 A/A F/M_5.0
Jacket material
PVC
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Material jacket: PVC
- Family-design USB-A
- PA casing; PVC
- CE: 2014/30/EU
- Protection class IP20;IP65
- UKCA 1
- Additional condition protection: In closed state;inserted
- Shielded: Yes
- Depth: 30
- REACH: Compliant
- Gender: Female
- Diameter 29.5
- Data plug USB
- Material contact: CuSn;gold plated
- WEEE: Compliant
- Min. Storage temperature: -25
- Storage temperature max.: 80
- Type of operating voltage: AC/DC
- Length: 5
- Operating voltage DC 5
- UL recognized component E362618
- Operating voltage min. DC: 5
- Pollution level 3
- Operating voltage AC:5
- Operating voltage DC max. 30
- Family-design Back side: USB-A
- Mounting position: Vertical
- Number of poles: 9
- Min. Plug-in cycles: 1500
- Operating voltage AC max. 30
- Gender Back: Male
- Protection class NEMA 12;3R;4x;4;13;type 2
- Max. Operating current: 900
- Mechanical life 1500
- CULus 1
- Net weight: 232
- Operating voltage AC min.: 5
- MSDD PT22-S USB 3.0 A/A F/M_5.0
- UL 50E: Yes
- Transfer rate max. 5000
- UL listed E362618
- Installation depth 70
- Max. Installation height NHN: 2000
- Diameter of cut-out: 22.5
- Ambient temperature: -25 °C to 80 °C
- Insulation resistance min.: 100
- Min. Panel thickness: 1
- Max. Panel thickness: 5
- China RoHS EFUP-E
- Type
MSDD PT22-S USB3.0 A/A F/M_5.0
- Product type
Sensor/actuator built-in connector
- No. of pins
9
- Jacket material
PVC
- Nominal voltage
5
- Contact material
CuSn, gold plated
- Manufacturer part #
4000-73000-0240000
- Content
1 pc(s)
- Depth
30 mm
- LAN transfer rate
5000 MBit/s
- Material
PA
PVC
- Recess depth
70 mm
- Durability
1500
- Protection class
IP20
IP65
- Weight
232
Documents & Downloads
Datasheet
Datasheet 3765991 Murrelektronik 4000-73000-0240000 Sensor/actuator built-in connector No. of pins (RJ): 9 1 pc(s)
Datasheet 3765991 Murrelektronik 4000-73000-0240000 Sensor/actuator built-in connector No. of pins (RJ): 9 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3765991 Murrelektronik 4000-73000-0240000 Sensor/actuator built-in connector No. of pins (RJ): 9 1 pc(s)
Description

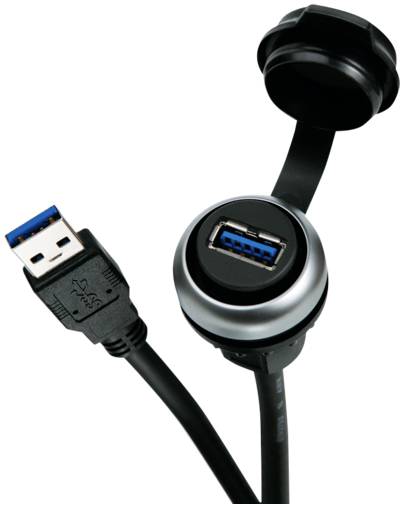

MSDD panel-mounted socket USB 3.0 BF A, 5.0 m cable, design silver-MSDD panel-mounted socket USB 3.0 BF A, 5.0 m cable, design silver-Murrelektronik GmbH
