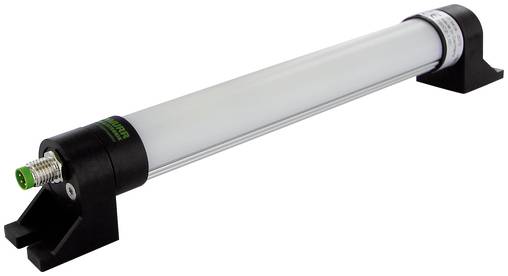

Murrelektronik 4000-75800-1715004 Modlight Illumix Slim Line 4W LED (monochrome) Work light 4 W 580 lm
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Features: Compact
- M8 family design
- Aluminium casing
- CE 1
- Protection class: IP54
- Depth: 24
- M8 connection type
- Width: 218
- Power: 4 W
- Vibration resistance: 10 mm (2 ... 9 Hz);3 g (9 … 200 Hz)
- Gender: Male
- Coating housing: Anodised
- Min. Operating temperature: -30
- Height: 34
- Coding: A
- Max. Operating temperature: 50
- Operating voltage DC 24
- Operating voltage min. DC: 21.6
- Operating voltage DC max. 27.6
- Light color: Daylight white
- Number of pins: 4
- CULus 1
- Material light cover: Diffuser polystyrene (HP)
- Screw head thread max. M5
- Sales text 2: LED machine lamp, IP54, 24VDC, M8 connector
- Material short text: Modlight Illumix Slim Line 4W
- Power consumption max.: 4
- Luminous flux: 580
- Max. Installation height NHN: 2000
- Light yield 145
- Colour temperature 5500
- Beam angle min.: 120
- Colour reproduction 80
- Screw head diameter max.: 12
- Relative humidity: 5% … 95%
- Dim
(W x H x D) 218 x 34 x 24 mm
- Product type
Work light
- Bulb type
LED (monochrome)
- Operating voltage
24 V
- Colour temperature type
5500 K
4 W
- Luminous flux
580 lm
- Width
218 mm
- Height
34 mm
- Protection class
IP54
n.rel.
- Depth
24 mm
- Colour
Daylight white
Documents & Downloads
Datasheet
Datasheet 3762649 Murrelektronik 4000-75800-1715004 Modlight Illumix Slim Line 4W LED (monochrome) Work light 4 W 580 lm
Datasheet 3762649 Murrelektronik 4000-75800-1715004 Modlight Illumix Slim Line 4W LED (monochrome) Work light 4 W 580 lm
User & Safety Instructions
User & Safety Instructions 3762649 Murrelektronik 4000-75800-1715004 Modlight Illumix Slim Line 4W LED (monochrome) Work light 4 W 580 lm
Description
Modlight Illumix Slim Line 4W LED Machine lamp, IP54, 24VDC, M8 Connection-Modlight Illumix Slim Line 4W-Murrelektronik GmbH
