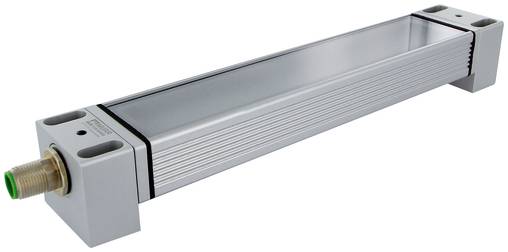

Murrelektronik 4000-75801-1415006 Modlight Illumix Classic Line 6W LED (monochrome) Work light 6 W 942 lm
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Features: Compact
- M12 family design
- Aluminium casing
- CE 1
- Protection class IP67
- Depth: 40
- M12 connection type
- Width: 235
- Output: 6 W
- Vibration resistance: 10 mm (2 ... 9 Hz);3 g (9 … 200 Hz)
- Gender: Male
- Coating housing: Anodised
- Min. Operating temperature: -30
- Height: 37
- Coding: A
- Max. Operating temperature: 50
- Operating voltage DC 24
- Operating voltage min. DC: 21.6
- Operating voltage DC max. 27.6
- Light color: Daylight white
- Number of pins: 4
- CULus 1
- Material lamp cover: Diffuse slot safety glass (ESG)
- Screw head thread max. M5
- Sales text 2: LED machine lamp, IP67, 24VDC, M12 connection
- Material short text: Modlight Illumix Classic Line 6W
- Power consumption max.: 6
- Luminous flux: 942
- Max. Installation height NHN: 2000
- Light yield 157
- Colour temperature 5500
- Beam angle min.: 120
- Material thickness lamp cover: 4
- Colour reproduction 80
- Screw head diameter max.: 12
- Relative humidity: 5% … 95%
- Dim
(W x H x D) 235 x 37 x 40 mm
- Product type
Work light
- Bulb type
LED (monochrome)
- Operating voltage
24 V
- Colour temperature type
5500 K
6 W
- Luminous flux
942 lm
- Width
235 mm
- Height
37 mm
- Protection class
IP67
n.rel.
- Depth
40 mm
- Colour
Daylight white
Documents & Downloads
Datasheet
Datasheet 3762660 Murrelektronik 4000-75801-1415006 Modlight Illumix Classic Line 6W LED (monochrome) Work light 6 W 942 lm
Datasheet 3762660 Murrelektronik 4000-75801-1415006 Modlight Illumix Classic Line 6W LED (monochrome) Work light 6 W 942 lm
User & Safety Instructions
User & Safety Instructions 3762660 Murrelektronik 4000-75801-1415006 Modlight Illumix Classic Line 6W LED (monochrome) Work light 6 W 942 lm
Description
Modlight Illumix Classic Line 6W LED machine lamp, IP67, 24VDC, M12 connection-Modlight Illumix Classic Line 6W-Murrelektronik GmbH
