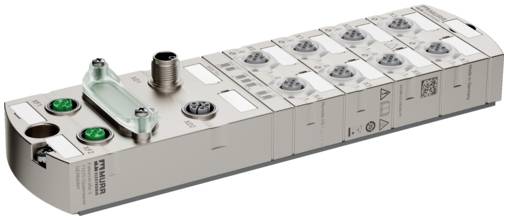

Name: Murrelektronik 54610 MVK Pro MPNIO DIO8 IOL8 M12L 5P Expansion 24 V DC
Brand: Murrelektronik
SKU: 3762700

Highlights & Details

MVK PRO MPNIO DIO8 IOL8 M12L 5P

SIMATIC S7-200 is easy: programming software with Windows user interface
instructions for quick access to PLC technology
easy installation onto a top hat profile rail
SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
own S7-200 net with PPI protocol
freely programmable interface.

Technical specifications

Product family: MVK
Type 8× Master
Inputs 16
Suitable for mounting method: 2-hole screw mounting
System: PROFINET
CE 1
Supported protocols: PROFINET
Protection class IP67
Signal type Digital;IO-Link
UKCA 1
Short-circuit-proof: Yes
Depth: 225
Outputs: 16
Width: 63
Number of IO-Link Master: 8
Height: 42
Min. Storage temperature: -40
Storage temperature max.: 85
Connection type 1: X0-X7
LED-display: Ethernet-connection/ data traffic
Case material: metal
Revision ID: V1.1
Conformance Class C
Connection type 2: XD1
Number of slots: 8
TRANSFER RATE: COM1, COM2, COM3
Addressing: DCP
CONNECTION TECHNOLOGY I/O M12
Port class A;B
Netload Class III
Connection type 3: XD2
Specification V2.3
Overload-proof: Yes
IRT network communication: Yes
Connection type 4: XF1, XF2
Shared Device/Input: Yes
CULus 1
Short-circuit diagnosis: Yes
Diagnostics by LED: Per module and channel
Actuator warning: Per channel via LED and BUS
Overload diagnosis: Yes
Diagnostics: Advanced
Temperature monitoring: Yes
Diagnostics via BUS: Per module and channel
MATERIAL SHORT TEXT: MVK PRO MPNIO DIO8 IOL8 M12L 5P
Type input: For 3-wire sensors or mechanical switches;IO-Link devices;PNP
Operating voltage standard IEC / EN 61131-2
Transmission rate detection: Automatic
IO-Link events: Undervoltage supply; no voltage
Cable break: Per port
Web Interface: Yes
Actuator current UA per output max.: 2
Power connection M12 (5-pin)
Operating voltage UA DC:24
Total current UA max.: 16
Total current US max.: 16
Ambient temperature: -40 °C - 85 °C
Operating voltage US DC: 24
Current monitoring: Yes
Power monitoring: Yes
Max. Current carrying capacity 10
Sensor current US per input max.: 2
OPC UA Transport: UA TCP;UA Binary Encoding;UA Secure Conversation
JSON INTEGRATION: REST API;MQTT
Output current per pin max. 2
Total current outputs max.: 10
Number of active connections: 2
Process data length output: 32
Process data length input: 32
Output current per port max. 4
OPC UA publication interval min.: 100
Number of sessions/clients OPC UA max.: 5

Product type: Expansion

No. of inputs (max.): 16

No. of outputs (max.): 16

Operating voltage: 24 V DC

Height: 42 mm

Width: 63 mm

Type: MVK Pro MPNIO DIO8 IOL8 M12L 5P

Manufacturer part #: 54610

Dim: (W x H x D) 63 x 42 x 225 mm

Max. ambient temperature: 85 °C

Min. ambient temperature: -40 °C

Depth: 225 mm

Ethernet ports: 8

Protection class: IP67

UKCA: yes
