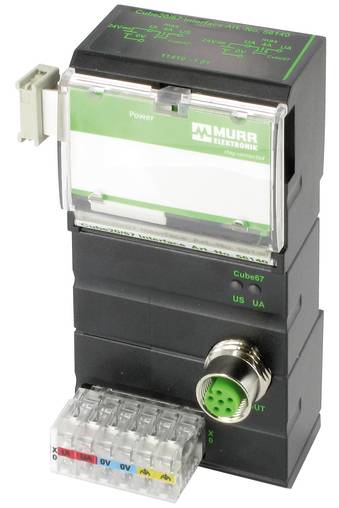

Murrelektronik 56140 Bus interface Clamp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Bus interface
Connection
Clamp
Cross section (inflexible) (max.)
2.5 mm²
Content
1 pc(s)
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Suitable for mounting type: (EN 60715);mounting rail
- System: Cube
- CE 1
- Protection class: IP20
- UKCA 1
- Depth: 47
- Width: 56
- Mounting type: Snapped on
- Min. Operating temperature: 0
- Height: 117
- Max. Operating temperature: 55
- Min. Storage temperature: -20
- Storage temperature max.: 85
- Connection type 1:Cube67 Out
- LED-display: Ethernet-connection/ data traffic
- Operating voltage DC 24
- Housing material: Plastic
- Connection type 2: X0
- Connection technology I/O: Terminals
- Connection cross-section max.: 2.5
- CULus 1
- Max. Power consumption: 25
- Diagnostics: Basis
- Material short text: Cube20/67 interface
- Actuator current UA per output max.: 4
- Operating voltage UA DC:24
- Total current UA max.: 4
- Total current US max.: 4
- Ambient temperature: -20 °C - 85 °C
- Max. Number of expansion modules: 15
- Operating voltage US DC: 24
- Product standard IEC / EN 61131-2
- Packaging type
Piece
- Product type
Bus interface
- Connection
Clamp
- Cross section (inflexible) (max.)
2.5 mm²
- Nominal voltage
24 V
- Manufacturer part #
56140
- Content
1 pc(s)
- Type
Cube20/67 Interface
- Dim
(W x H x D) 56 x 117 x 47 mm
- Width
56 mm
- Height
117 mm
- Insulation material
Plastic
- Depth
47 mm
- Protection class
IP20
- Operating voltage
24 V
- Max. temperature
55 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762712 Murrelektronik 56140 Bus interface Clamp 1 pc(s) Piece
Datasheet 3762712 Murrelektronik 56140 Bus interface Clamp 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3762712 Murrelektronik 56140 Bus interface Clamp 1 pc(s) Piece
Description
Cube20/67 Interface-Cube20/67 Interface-Murrelektronik GmbH
