Murrelektronik 7000-08081-2301500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M8
Connection side B
Cable, open end
No. of pins
3
Nominal voltage
60
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Product family: Industry Standard
- Functions: Without LED; unshielded
- Type: Socket
- Page 2 Connection: Free cable end
- Screw connection: Zinc die-cast
- Insulating material group: I
- Family design: Open cable ends
- CE 1
- PROTECTION CLASS IP65;IP66K;IP67
- UKCA 1
- Additional condition protection: Inserted;screwed
- Material locking: Die-cast zinc
- Seal: FKM
- Gender: Female
- Coating contact: Gold-plated
- Coating locking: Matt nickel-plated
- Material PUR
- Mounting type: Plug-in; screwed; vibration proof
- Mounting thread M8 x 1
- Min. Operating temperature: -25
- Note on the bending radius: Less than strong greater than CAUTION: Less than /strong greater than /strong greater than the cable routing Note the permissible bending radii, since too much bending forces can endanger the IP protection class.
- Material contact: Copper alloy
- China RoHS e: 1
- Coding: A
- Additional condition Temperature range: Depending on connected cable
- Max. Operating temperature: 85
- Note on strain relief: Protect the plug connectors from mechanical loads, e.g. by using cable fasteners.
- Page 1 Connection: M8
- Sensor/actuator cable
- Tightening torque: 0.4
- Thread M8 x 1
- Pollution level 3
- Operating voltage DC max. 60
- Page 1 Cable outlet 90°
- Number of poles: 3
- Operating voltage AC max. 50
- Operating current: 0 A … 4 A.
- Cable outlet: Angled
- Operating current per contact max. 4
- Max. Operating current: 4
- CCSAus: 1
- CULus 1
- Operating current min.: 0
- Page 1 Number of poles: 3
- Sales text 2: PUR 3x0.25 gr UL/CSA+tuk. 15m
- Min. Operating voltage: 0
- Max. Operating voltage: 60
- Material short text: MSGL0-R230_15.0
- Dimensioning surge voltage 1.5
- Supply voltage: 0 V – 60 V
- Suitable for corrugated hose: 6.5
- PRODUCT STANDARD: EN / IEC 61076-2-104 (M8)
- Stripping length 20:1
- Type
MSGL0-R230_15.0
- Product type
Sensor/actuator cable
- Connection side A
M8
- Connection side B
Cable, open end
- No. of pins
3
- Nominal voltage
60
- Contact material
Copper alloy gold plated
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Manufacturer part #
7000-08081-2301500
- Content
1 pc(s)
- Connector version
angled
- Protection class
IP65
IP66
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3763705 Murrelektronik 7000-08081-2301500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Datasheet 3763705 Murrelektronik 7000-08081-2301500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3763705 Murrelektronik 7000-08081-2301500 Sensor/actuator cable No. of pins (RJ): 3 1 pc(s)
Description

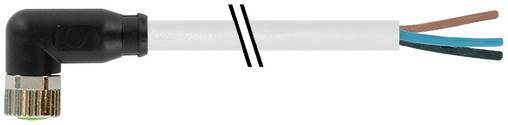

M8 socket 90° A-coded Free cable end PUR 3x0.25 g UL/CSA+towing. 15m-M8 socket 90° A-coded Free Ltd-end-Murrelektronik GmbH
